What is the best way to create Dome Surface

Forum|Forum|10 years ago
October 5, 2015
2 replies
7897 views

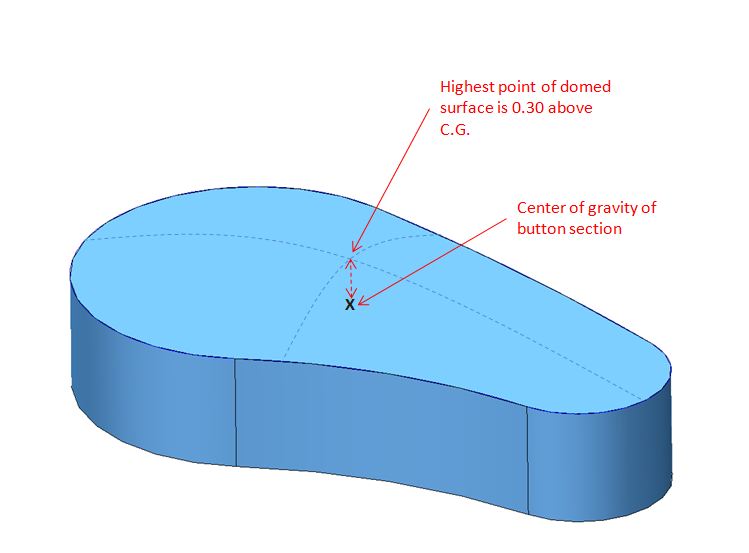

I am currently working on a button design that requires a crown on its top surface, see pic below. The highest point is 0.30 MM, ideally from its x-sectional center of gravity. What is the best way to:

1. locate the C.G.

2. model the dome for its top surface.

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1_button-prt-3.zip

General

T

TomD.inPDX

17-Peridot

Creo 2.0 attached.

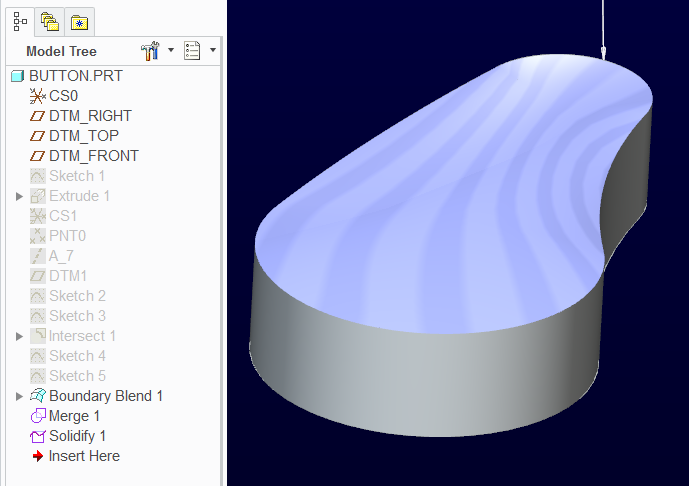

0. make extrude solid

1. get CG from mass properties

2. locate CSYS with CG parameters

3. create point .03" above over CG

4. intersect desired dome curve

5. generate edge sketches (2)

6. create boundary blend and manipulate the joining points.

7. create surface from top surface

8. merge surfaces

9. solidify

Steps 7-8 made for cleaner edges.

Probably 10 more ways to do this but that's what I did.

1_domed_button-prt-1.zip

T

TomD.inPDX

17-Peridot

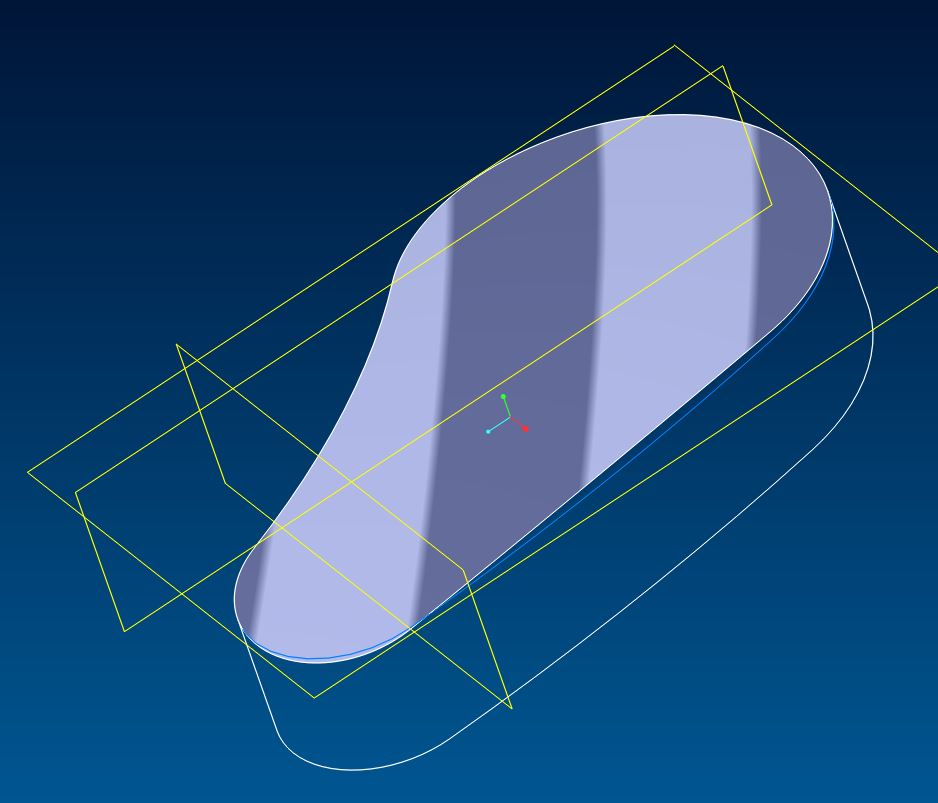

sorry, missed the 0.3mm... Some more tweaks on this one.

1_domed_button_ii-prt-1.zip

J

John.Pryal

1-Visitor

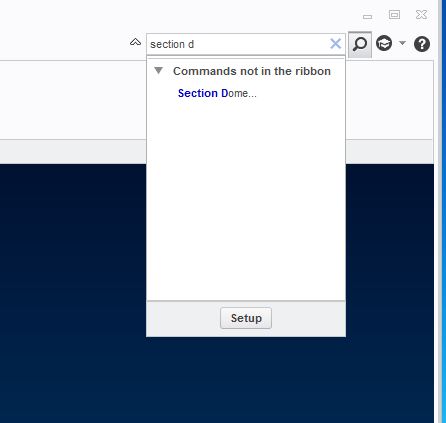

Hello, you could also consider using some old pro-e features burried deep down in the software, Radius dome & Section dome. There is a config option allow_anatomic_features which allow the use of these, but they are still hidden. You can access them by searching in the top right hand corner for commands that are not in the ribbon. They might not give you the required geometry, but they are an option all the same.

John
