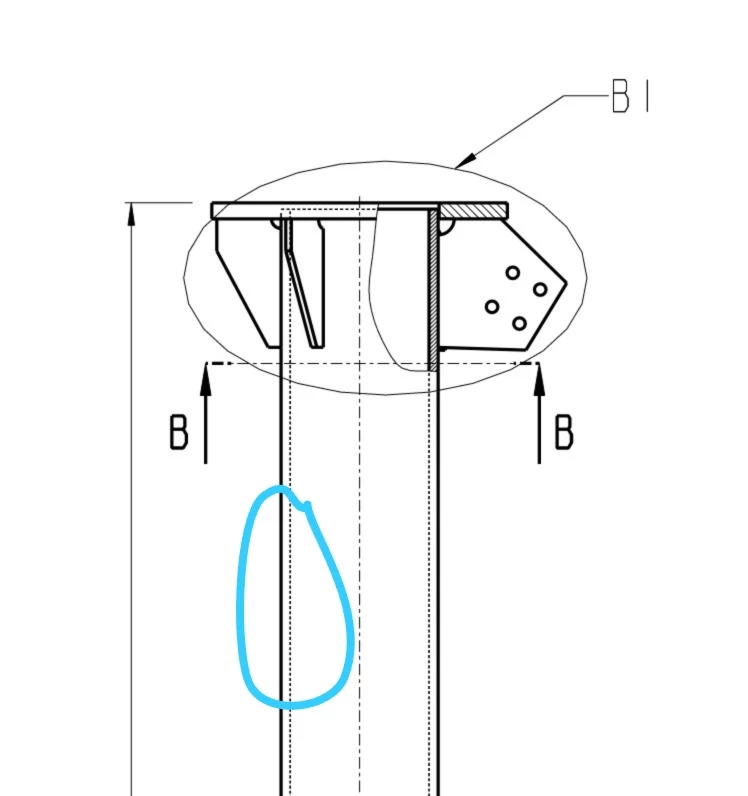

Hi everyone,I’m working in Creo Parametric 12 and I want to make hidden lines in my drawings more visible(you can see in photo 1 how it's now). Specifically, I want:Dashed segments to be longerLines to appear clearer for printing and on-screen viewingI think i have to add a line to my drawing settings but i don't know which one. Could you please advise how to achieve this?Thank you!

GV_11208110

4-Participant

Question

How to make hidden lines more visible

Forum|Forum|4 months ago
November 18, 2025
1 reply
215 views

Hi everyone,

I’m working in Creo Parametric 12 and I want to make hidden lines in my drawings more visible(you can see in photo 1 how it's now). Specifically, I want:

Dashed segments to be longer
Lines to appear clearer for printing and on-screen viewing

I think i have to add a line to my drawing settings but i don't know which one.

Could you please advise how to achieve this?

Thank you!
