3MF export of stochastic lattices

  • January 28, 2022
  • 3 replies
  • 3801 views

Dear community,

I want to know if it is possible to export stochastic lattices in 3MF format?

On the CREO support it is indicated that it is possible to export in 3MF lattices with a simplified representation and a circular cross sections (which is the case for stochastic lattices), but it is impossible for me to export them in this format...

Thanks in advance for your answer

3 replies

V
24-Ruby III
VladimirN24-Ruby III
24-Ruby III
January 28, 2022

 Hi,



1. What version of Creo are you using?

2. From Help Center - "3D Manufacturing Format": https://support.ptc.com/help/creo/creo_pma/r8.0/usascii/#page/data_exchange/interface/About_the_3MF_format.html#

C
CS_99466861-VisitorAuthor
1-Visitor
January 28, 2022

Hi,



I'm Creo Parametric 8.0.1.0.



As mentioned before and on the link you gave me: to export the files in 3MF, the lattices must have a circular section and be in simplified representation. In my case, I try to export stochastic lattices with circular section in a simplified representation and I can't export them in 3MF. This gives me an empty file, impossible to use.

M
MartinHanak24-Ruby III
24-Ruby III
January 28, 2022
@CS_9946686 wrote:
Dear support service, dear community,

I want to know if it is possible to export stochastic lattices in 3MF format?

On the CREO support it is indicated that it is possible to export in 3MF lattices with a simplified representation and a circular cross sections (which is the case for stochastic lattices), but it is impossible for me to export them in this format...

Thanks in advance for your answer

Hi,

please ask PTC Support.

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
February 1, 2022

Hi @CS_9946686,



Can you share a sample data and steps to test the issue?



Thanks.



C
CS_99466861-VisitorAuthor
1-Visitor
February 4, 2022

Hello,


Here are the steps I followed to create a stochastic lattice cube:



1. I created a 10x10x10mm cube using an extrusion ;

2. From the engineering menu, I created a lattice function ;

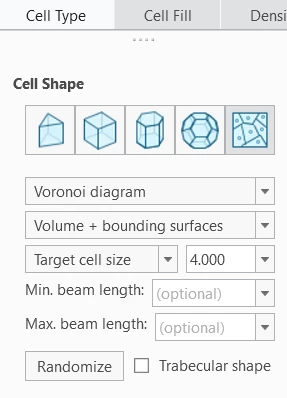

3. I replaced the body with lattice, choose stochastic as cell shape with the Voronoi diagram ;

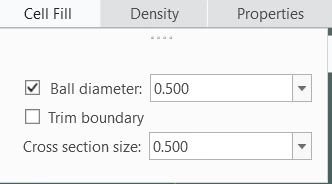

4. I chose a cross section size of 0.5mm, a sphere diameter of 0.5mm and a uniform lattice density ;

6. I chose a simplified representation of the lattice.



After that, I tried to import the cube in 3MF format, but the resulting file is empty.



In the zip file you can find the result of the import in 3mf and my stochastic cube in stl.



Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
February 9, 2022

Hi @CS_9946686



Thanks for sharing the detailed information.

When creating Lattice feature, change the representation to "Full Geometry".

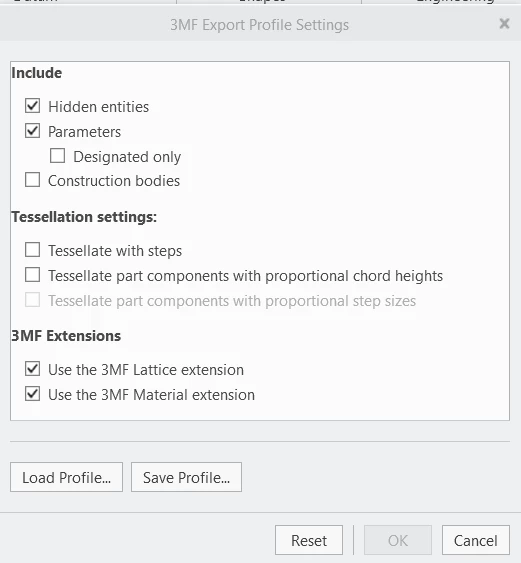

Also, other option for Simplified representation is to uncheck "Use the 3MF Lattice extension" in export settings.

This will allow importing the 3mf correctly.



Thanks.
