Attempting to use double subscripts to plot for unique circular segments. Can do it one at a time.

  • March 12, 2024
  • 2 replies
  • 2373 views
I am using Mathcad Release 15.0 and DatecodeM050

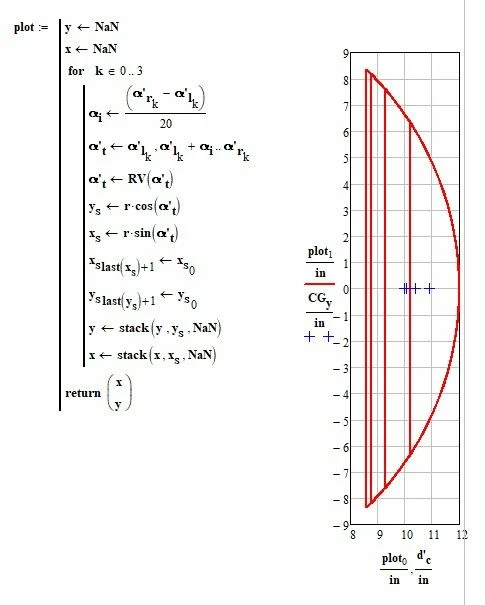

Need to plot circular segment for four different cases. Need help setting up. see page 19

Sheet one dose it individually, Sheet two wit T on name is my attempt to do this. See page 19.

Here are the errors that I faced
See sheet

Don't know how to upload my sheets.
    Best answer by terryhendicott

    Hi John,

    Here is one way:


    Cheers

    Terry

    2 replies

    T
    21-Topaz II
    terryhendicott21-Topaz II
    21-Topaz II
    March 12, 2024

    Hi

    Look below the text box used to post and you will see a location to drag and drop files or browse the computer to upload them.

    Cheers

    Terry

    L
    LucMeekes23-Emerald IV
    23-Emerald IV
    March 12, 2024

    1. I'm afraid your problem is not solved.

    2. This part of the forum is for installation and licensing problems. Your problem would get more attention in another part of the forum: https://community.ptc.com/t5/Mathcad/bd-p/PTCMathcad

    3. Your sheet is quite overwhelming(ly large) and it's not clear (to me) what your problem actually is. If possible, condense your file to just the plotting problem, with a simple example of what you want to achieve.



    Success!
    Luc

    J
    john_clark5-Regular MemberAuthor
    5-Regular Member
    March 12, 2024

    Thanks for the response.

    You site is a nightmare to navigate.

    See page 19 for the issue. This was in the notes.

    Thanks again.

    jmc

    L
    LucMeekes23-Emerald IV
    23-Emerald IV
    March 12, 2024

    It's not 'my site', it's PTC's site, for users of their software (such as myself) to interact. But you're right, the PTC sites are a nightmare to navigate. That's been so for a long time, for reasons unknown (it least unpublished).



    Your problem is still unclear to me.



    Success!
    Luc
