Gappy Plots

  • March 22, 2012
  • 3 replies
  • 4620 views

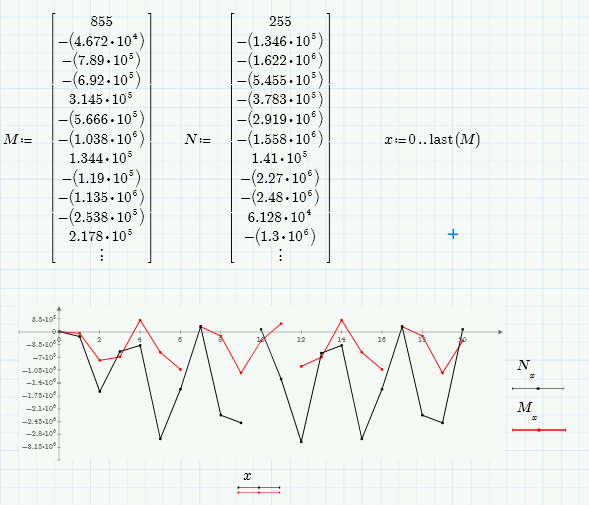

I just installed Prime 2 and a plotting bug I've seen in Prime 1 is still there. Attached is a worksheet with some data points I grabbed from some simulation data to illustrate the point. Here is a screen shot of the worksheet:

Gapped Plots Bug.png

Notice the missing connecting lines between several points in both plots. What is happening, and is there a workaround?

Thanks,

Gerrit

3 replies

G
GerritBarrere1-VisitorAuthor
1-Visitor
March 22, 2012

Just noticed that it seems to have to do with zero crossing. Offsetting the plots to one side or the other of the zero axis fixes the problem.

V
VladimirN24-Ruby III
24-Ruby III
March 23, 2012

Gerrit Barrere wrote:

I just installed Prime 2 and a plotting bug I've seen in Prime 1 is still there...

And why you didn't report about this issue to PTC's technical support?

V
VladimirN24-Ruby III
24-Ruby III
March 23, 2012

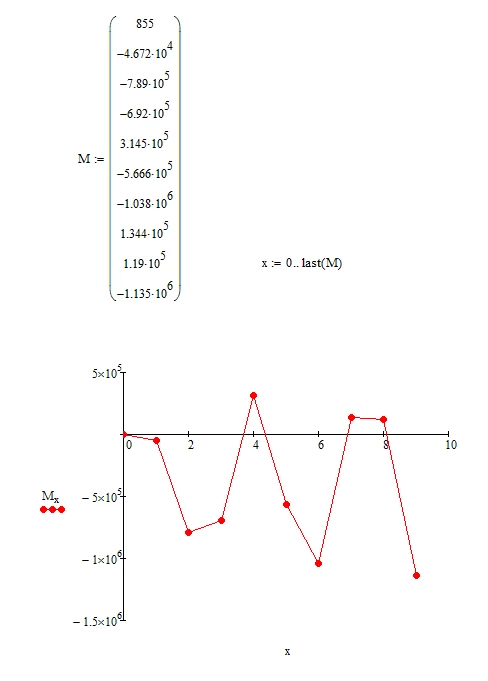

In Mathcad 15 M010:

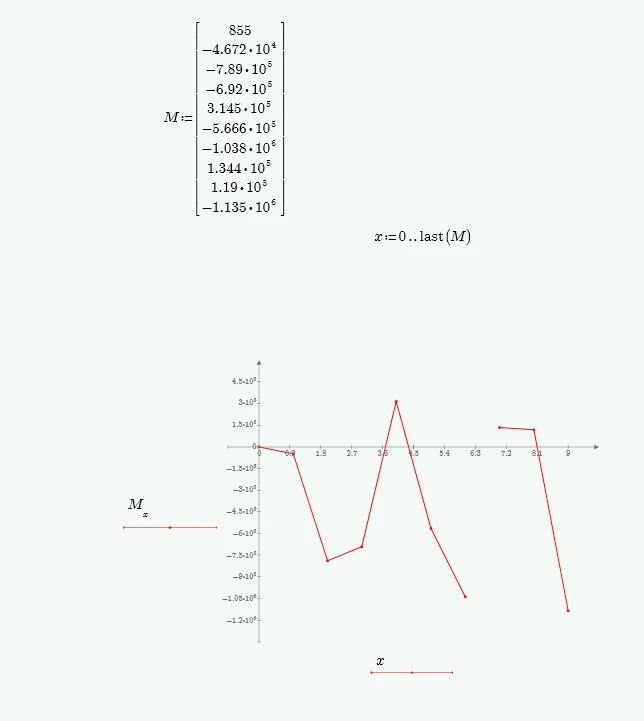

and in Mathcad Prime 2.0, after converting the file from MC15:


M
mzeftel1-Visitor
1-Visitor
March 23, 2012

I'll log this bug.

Mona

V
VladimirN24-Ruby III
24-Ruby III
March 26, 2012

Mona,

Thanks. I hope this issue will be solved in a future service release of MP2.0.
