Generate STL (Mathcad 14/15)

  • November 5, 2013
  • 1 reply
  • 2127 views

Hi,

I retype the document "Generate STL" in Mathcad 15, the original of which was created for Mathcad Prime 2 version (http://communities.ptc.com/servlet/JiveServlet/download/3618-2-50300/Generate%20STL.mcdx.zip). But as a result of the program in version 15 created STL file can not be read in Creo Parametric. In what may be a problem (because any new built-in functions in the original document is not used)? Or is something missing when typing a document from the original?

Best answer by VladimirN

Here is a solution from PTC's technical support:

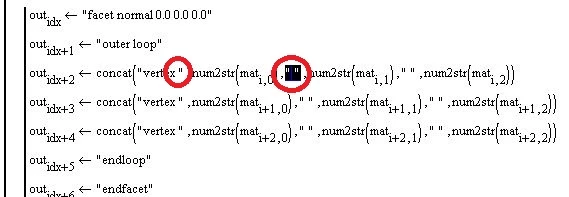

"... in the Mathcad 15 sheet there are missing spaces (see image) and a typo (ensolid instead of endsolid)".


Corrected worksheet can be found in attachment.

1 reply

V
VladimirN24-Ruby IIIAuthorAnswer
24-Ruby III
November 15, 2013

Here is a solution from PTC's technical support:

"... in the Mathcad 15 sheet there are missing spaces (see image) and a typo (ensolid instead of endsolid)".


Corrected worksheet can be found in attachment.
