Graph in Mathcad

  • July 1, 2011
  • 2 replies
  • 5836 views

Hi,

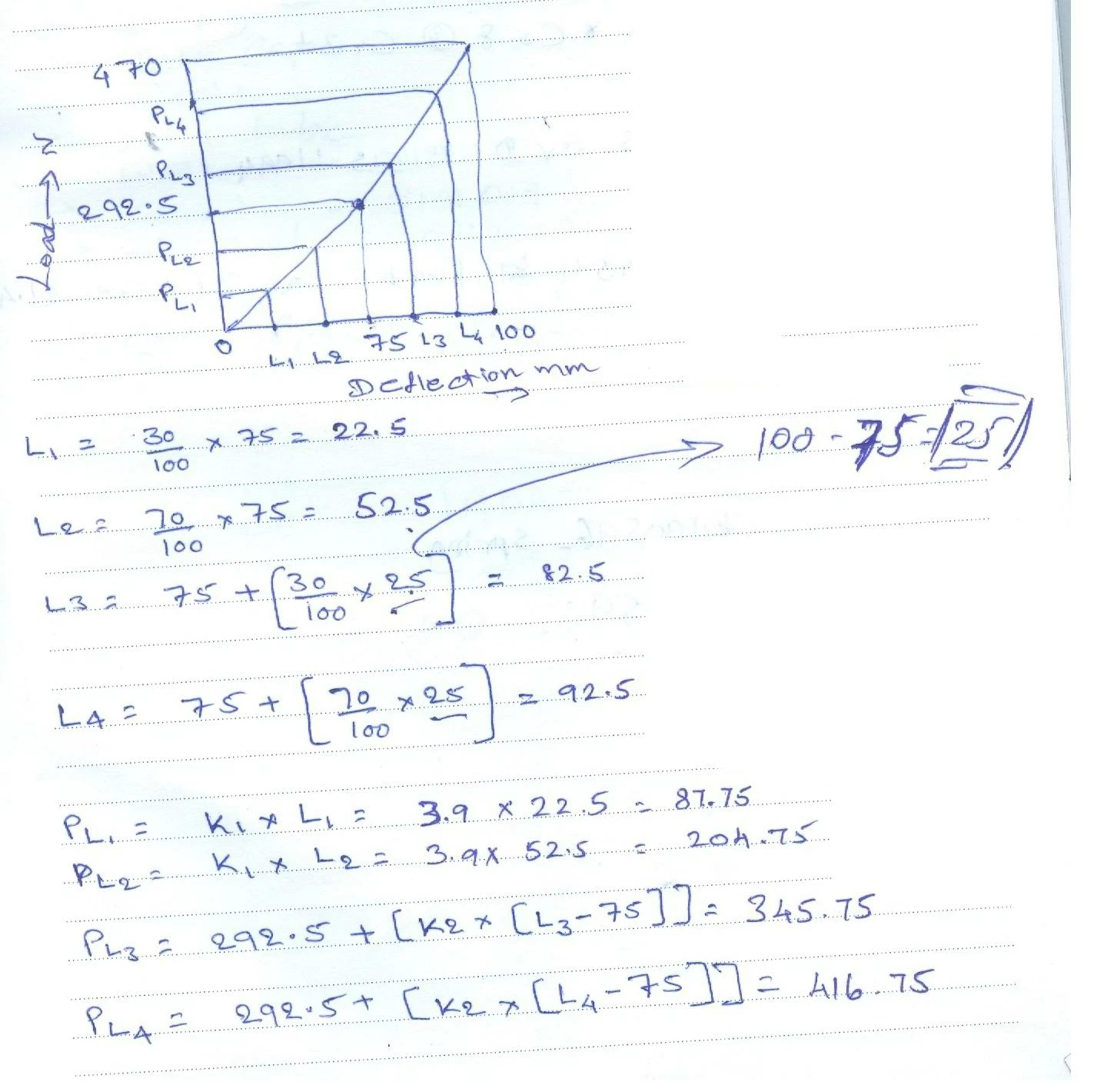

Find the attached image. How to plot such a graph in Mathcad 15?

--

Dhinesh

Best answer by MikeArmstrong

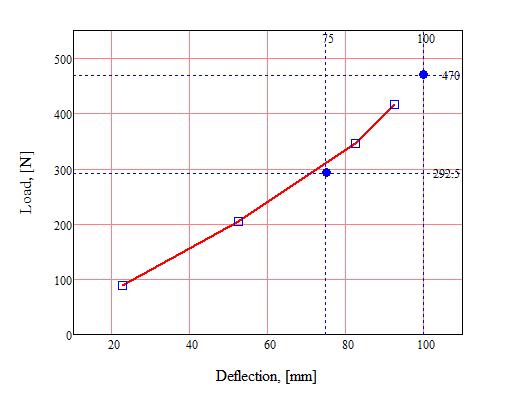

Please see attached. I have used the Lines function to create the vertical lines on the X-axis, but had to use vector's to create the lines on the Y-axis. It works, but looks untidy. I'll have a go at writing a function for the Y-axis now.

Mike

2 replies

M
MikeArmstrong1-Visitor
1-Visitor
July 1, 2011

Can you provide a worksheet with the data?

I'm sure the graph can be done, but too lazy to type the data out

Mike

D
dm-31-VisitorAuthor
1-Visitor
July 1, 2011

Mike,

pfa

I know the graph can be plotted.

But I need similar kind of output as in image.

--

Dhinesh

M
MikeArmstrong1-VisitorAnswer
1-Visitor
July 1, 2011

Please see attached. I have used the Lines function to create the vertical lines on the X-axis, but had to use vector's to create the lines on the Y-axis. It works, but looks untidy. I'll have a go at writing a function for the Y-axis now.

Mike

V
24-Ruby III
VladimirN24-Ruby III
24-Ruby III
July 1, 2011

Hello!

The easiest and fastest way is as follows:


D
dm-31-VisitorAuthor
1-Visitor
July 1, 2011

Vladimir,

Which graph option I have to use? What are the settings I have to do?

--

Dhinesh

V
24-Ruby III
VladimirN24-Ruby III
24-Ruby III
July 1, 2011

The settings for plot can be changed using tab "Formatting" (right click on the plot and choose in the list "Format .."). Basic tab with which it is necessary to work it- "XY Axes", "Traces", "Labels".

P.S. I have attached to the message file for Mathcad 15.
