How do I create grids in a plot in Prime 4.0?

  • April 25, 2017
  • 3 replies
  • 4187 views

I have Bode plots among other plots that I would like to have grid lines displayed.  I understand that Prime 4.0 will allow us to display and set up plots as we did in Mathcad 15.  I can't seem to locate anything that will allow me to do this under the plot function.

Thank you for any help.

Best Regards,

Jim Carl

Best answer by MJG

PTC had originally advertised that plotting enhancements would be included in Prime 4.0.  However, they later pushed back those enhancements to Prime 5.0.

3 replies

V
ValeryOchkov24-Ruby IV
24-Ruby IV
April 25, 2017

Sorry,

We must gave grids on a paper plot.

For Mathcad plots markers is good!

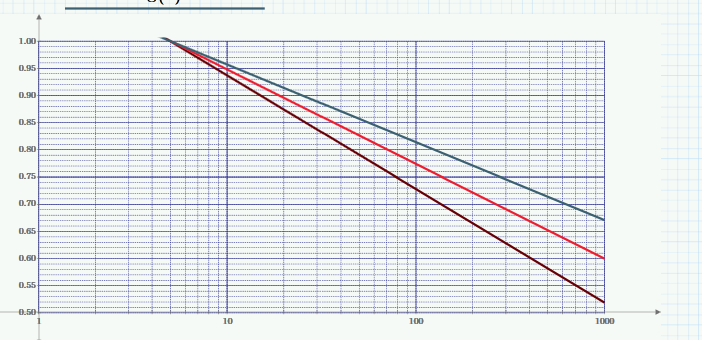

Two pictures



J
jcarl1-VisitorAuthor
1-Visitor
April 25, 2017

I guess I can put in a few horizontal and vertical markers and pretend those are the grid lines.  They will be close enough.  Sounds like we didn't get the same plotting capabilities as in Mathcad 15.0.

Thank you for taking time to answer.

Best Regards,

Jim Carl

W
Werner_E25-Diamond I
25-Diamond I
April 25, 2017

James Carl wrote:

I have Bode plots among other plots that I would like to have grid lines displayed.  I understand that Prime 4.0 will allow us to display and set up plots as we did in Mathcad 15.  I can't seem to locate anything that will allow me to do this under the plot function.

Yes - its ridiculous and inexcusable, but even in Version 4 Prime does not offer that basic functionality,

You have to make your own grid lines in a tedious and awkward way. See here for one possible way to do it Re: In MCD Prime 4.0 is there any way to add gridlines to plots?

    J
    jcarl1-VisitorAuthor
    1-Visitor
    April 27, 2017

    I was made aware by Mr. Metcalf that I responded to the email notification rather than post this here. Thank you Mr. Metcalf for the heads up about this.

    Thank you all for methods make the information graphed more meaningful.  This is helpful.  I was led to believe that the plotting of grids as we are able to do in Mathcad 15.0 was to be added to Prime 4.0 first release.  It is somewhat disappointing that it has not been added as yet.

    M
    MJG1-VisitorAnswer
    1-Visitor
    April 27, 2017

    PTC had originally advertised that plotting enhancements would be included in Prime 4.0.  However, they later pushed back those enhancements to Prime 5.0.
