Limiting functions

  • March 15, 2013
  • 3 replies
  • 2444 views

Hi all,

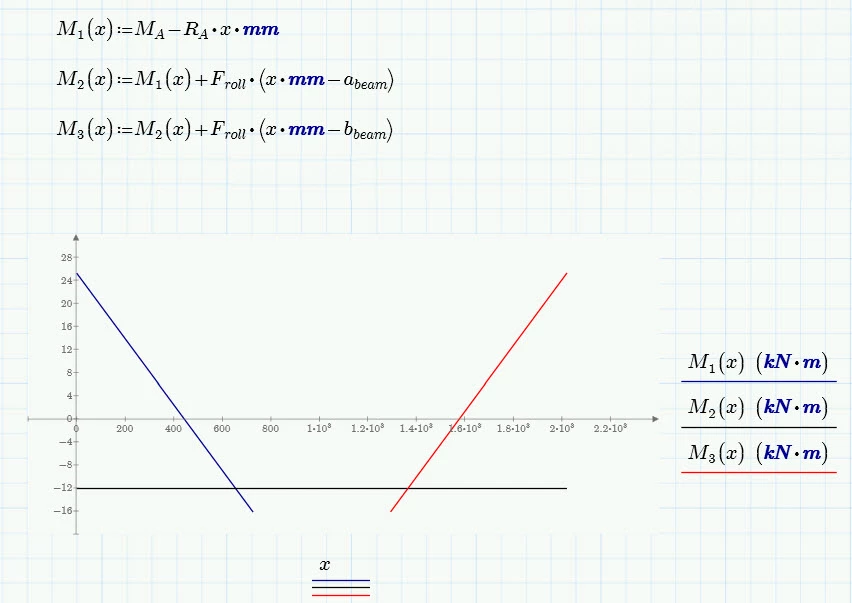

I am goint to make xy-plots of three functions f(x), g(x) and h(x). The function h(x) depends of g(x) which depends of f(x).

I would like to set up for which values of x each function should apply e.g. f(x) for x =A-B, g(x) for x=B-C and h(x) for x=C-D.

How do I do this? Is it easier to put the range on the functions or on the plot?

I am using Mathcad Prime 2.0.

I hope you can help me out.

Thanks in advance.

-Ronnie

Best answer by AlanStevens

Probably slightly better as in the attached, so you get units on the x axis as well.

Alan

3 replies

24-Ruby IV
March 15, 2013

Sent please Mathcad file!

1-Visitor
March 15, 2013

Hi, could you please upload the Mathcad worksheet.

Mike

1-Visitor
March 15, 2013

hi,

I have had to pull a lot of information out of the sheet as it is confidential, so it doesn't really say much more than the photo I uploaded in the beginning.

I would like to limit the functions so the plots do not continue after an intersection.

-Ronnie

19-Tanzanite
March 15, 2013

Here's one way.

Alan

19-Tanzanite
March 15, 2013

Probably slightly better as in the attached, so you get units on the x axis as well.

Alan
