Hi,

I have a spring calculation done in Mathcad 15.0. I am integrating the results with Pro/E wildfire 5.0 for creating the spring model.

I try to create a variant from the part file by creating a back-up from the created partt file and changing the input values, adding further more calculations to the existing sheet.

If I do this the relations are getting distorted. I get a warning that relations is having errors.

How to correct this?

--

Dhinesh

1 reply

V
VladimirN24-Ruby III
24-Ruby III
July 19, 2011

Hello!

...If I do this the relations are getting distorted. I get a warning that relations is having errors...

Could you show a screenshot of this error?

D
dm-31-VisitorAuthor
1-Visitor
July 19, 2011

Vladimir,

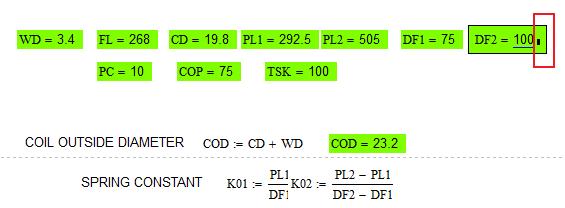

Find the attached screen shot.

--

Dhinesh

V
VladimirN24-Ruby III
24-Ruby III
August 4, 2011

You used tags for data transmission "mc2proe" and "proe2mc", but just forgot to specify also near to value and units of measure in Mathcad! Without them integration will not work.
