Question

No 3D bar plots in MathCad 14.0.163 build 701291152

  • December 1, 2011
  • 3 replies
  • 4381 views

Whenever I click the 3D bar plot icon in the Graph toolbar or click the menu items Insert => Graph => 3D Bar Plot, I get a small box around a single rectangular placeholder on the worksheet, but no graph. I try inserting a vector into this, but all I get is the vector name, still no graph. How to get Mathcad 14.0.163 build 701291152 to properly insert 3D bargraphs or 3D contour plots?

I seem to recall 3D contoiur plots working in a prior version of MathCad.

Thanks.

3 replies

F
Fred_Kohlhepp23-Emerald I
23-Emerald I
December 1, 2011

I've got the same version/build (I think) and I've no problems. What do you see when you open the attached file?

M
MarkBohrer1-VisitorAuthor
1-Visitor
December 1, 2011

Fred:

I get an error dialog "Failed to launch server application", and a squarish outline area where the 3D bar graph would probably otherwise appear.

Do I have a problem with my Vista installation?

I'm hoping to install 64-bit Windows 7 on this machine as soon as I'm through with my last final in a couple weeks, and it may not exhibit this problem after that - *IF it's an OS problem.*

Thanks.

Mark

V
24-Ruby III
VladimirN24-Ruby III
24-Ruby III
December 2, 2011

What Windows OS are you using?

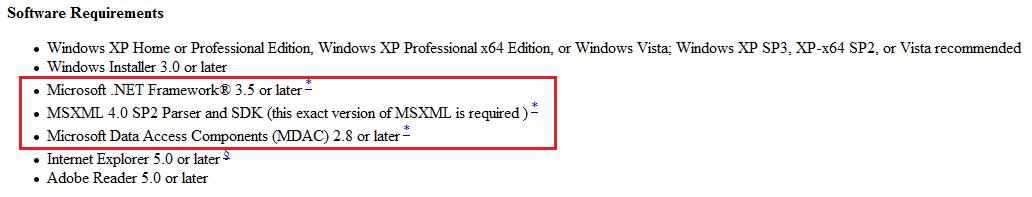

Note that for Mathcad 14, you must have the following components (from Microsoft) preinstalled on PC:


Also, try to upgrade to the latest release of Mathcad 14 M035, here: http://www.ptc.com/appserver/cs/software_update/swupdate.jsp

Release Notes for Mathcad 14 can be found here: http://www.ptc.com/WCMS/files/98347/en/Mathcad_14_M035_RELNOTES.HTM

V
24-Ruby IV
ValeryOchkov24-Ruby IV
24-Ruby IV
December 2, 2011

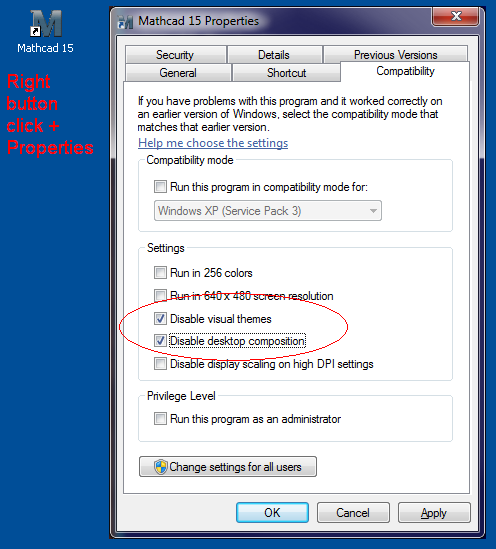

Try please change this:
