plotting 3d experimental data

  • February 12, 2013
  • 2 replies
  • 1313 views

I'm fairly new to mathcad, but few hours of attemts did not yield any positive results.
Thing i'm tryin to do, is plotting Voltage fluctuation spectral density against frequency And temperature.

So it would be x - freq, y - temp, and z - voltage.

Problem arises as 1) theese values are distributed non-uniformly.

2) i could really use log scale on x axis.

Typical matrix or 3 vectors view cant really help, because my axis are plotted as integers.

I also had an idea of plotting several x,z curves with changing y parameter, but mathcad does not allow it.

Any tips?


Best answer by StuartBruff

Does the attached help? Basically, you create 2 conformable matrices with your frequency and temperature data (one vector being replicated across the columns and the other down the rows) then plot the 3 resulting matrices using parentheses to group them together.

Stuart

2 replies

S
StuartBruff23-Emerald VAnswer
23-Emerald V
February 12, 2013

Does the attached help? Basically, you create 2 conformable matrices with your frequency and temperature data (one vector being replicated across the columns and the other down the rows) then plot the 3 resulting matrices using parentheses to group them together.

Stuart

    P
    ptc-49637571-VisitorAuthor
    1-Visitor
    February 12, 2013

    Thats amazing, i am yet to grasp the mechanics of it, but thats exactly what i needed.
    I appreciate it

      W
      Werner_E25-Diamond I
      25-Diamond I
      February 12, 2013

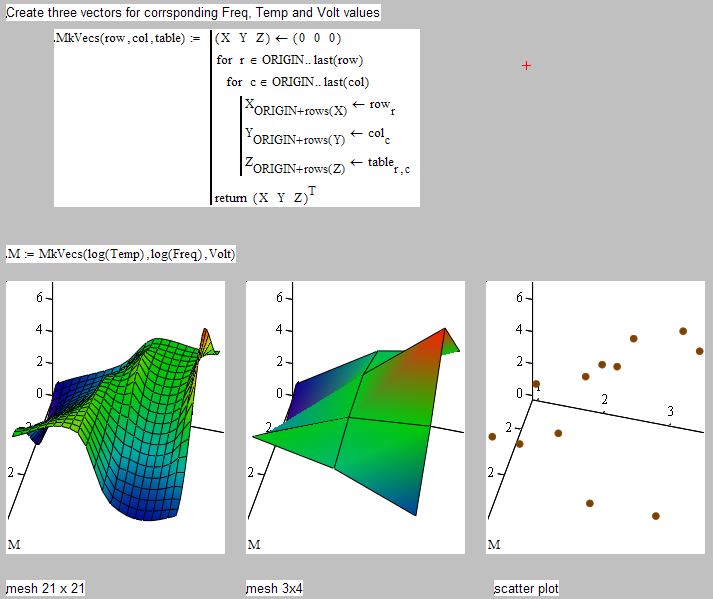

      Yet another approach
