Problem with units on solve blocks

Forum|Forum|10 years ago
May 24, 2016
7 replies
4336 views

Hello,

I'm realtively new to MathCAD Prime 3.1. In my previous works I used MathCAD 14 but with this one I can't make this work. Especially the units.

Basically, I just want to solve a system of two equations and I can't make this work right. That's why I need some help from you guys. I've searched a lot here, but the problem remains.

At the end of the attached file there are two solve blocks. I want to solve them both, so in each one I do: Find(W_L1,R1), for example, to obtain result of the system, but MathCAD can't do that for me and I don't understand why. If I eliminate all the units and try to solve them, I think it does the math. Although, as this is part of my thesis work, I want everything right, including the units, that are essential.

Thank you in advance for your time.

Regards!

1_UMC_130[3]-(Quatro-equações)-mcdx.zip

Other

Best answer by -MFra-

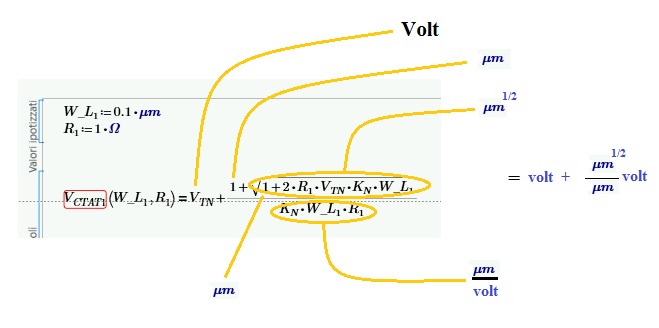

Something is wrong in the formulas. (Assuming that the units of measure, which I attributed to R1 and W_L1, are the right ones)

On the other hand, leaving everything unchanged, something is wrong as well:

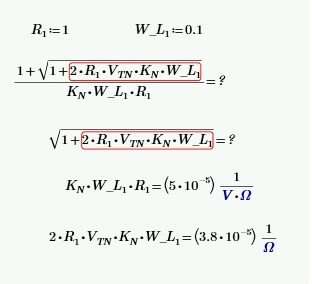

Also the number 1 under the radical should be sized (1S)

R

RichardJ

19-Tanzanite

Many of us can't read a Prime 3.1 file. Please post a pdf.

V

VladimirN

24-Ruby III

Richard,

You can find it in attachment.

1_UMC_130[3]-(Quatro-equacoes).pdf

V

ValeryOchkov

24-Ruby IV

Do you want to solve ODE?

I think you must use the derivative operator and the function with one argument T

W

Werner_E

25-Diamond I

Not using the derivative operator is just one of the problems.

You should define your function V.CTAT using := before the solve block.

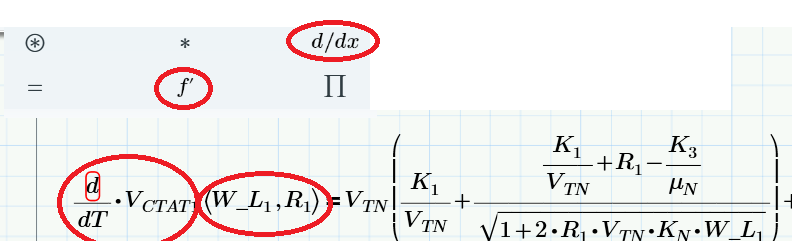

Also you should define the derivative you want to use as a function before. But you seem to take the derivative with respect to a variable T the function is not depending on - so the derivative would be zero! probably not what you intended.

Furthermore you have a lot of unit mismatches, e,.g.

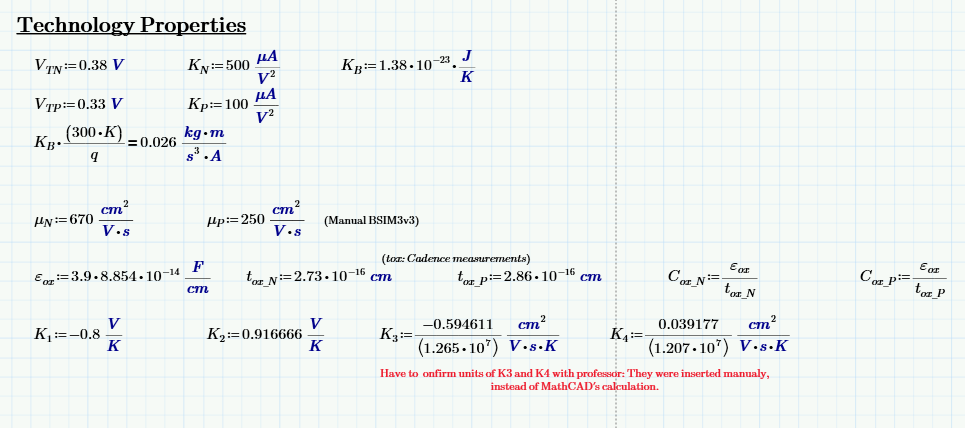

V.TN*K1/V.TN would be dimensionless, but the derivate would have the unit volt divided by unit of T

In the nominator you try to add three summands - each of which has a different unit. Obviously this can't work.

Are you sure that R1 should be dimensionless? If not, you would have to provide the correct unit with the guess, too.

WE

-

-MFra-

Answer

21-Topaz II

Something is wrong in the formulas. (Assuming that the units of measure, which I attributed to R1 and W_L1, are the right ones)

On the other hand, leaving everything unchanged, something is wrong as well:

Also the number 1 under the radical should be sized (1S)

D

dguerra

Author

1-Visitor

Thank you so much for your help guys!

Yes, something was wrong with the expression, as I was not using the value of T on the equation. Basically, I want to study how the voltage V.CTAT1 varies with temperature T. Then I have to do the same thing for another V.CTAT2 (in series) and dimension the relation W/L in order to achieve temperature independence, because I want to have a voltage reference that is independent of the temperature coefficients.

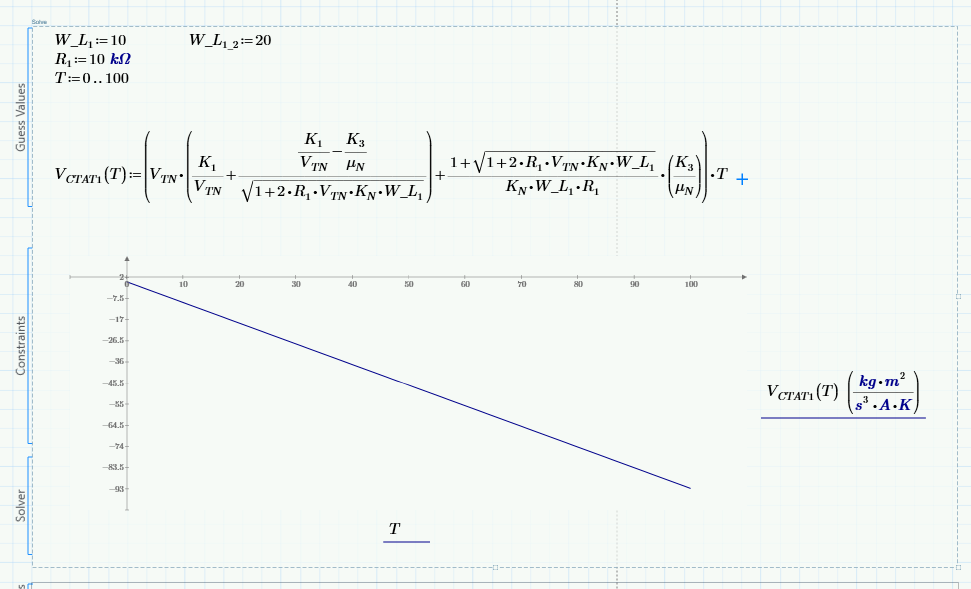

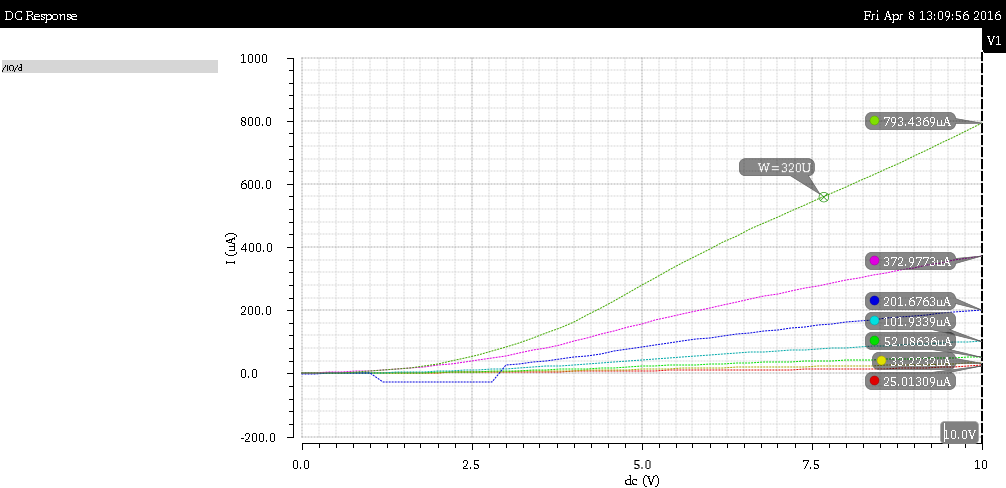

W_L.1 is the ratio between Width and Length of the transistor, so it is unit less. R1 is the value of a resistor that I can vary "outside the box" and T is the range of temperature from 0 to 100 degrees. I think I have something here now:
