14 replies

LucMeekes23-Emerald V
23-Emerald V
Jun 21, 2022 9:11 AM UTC

Please attach your Mathcad sheet, not just a picture.



Success!
Luc

Translate
    JF_102054731-VisitorAuthor
    1-Visitor
    Jun 21, 2022 10:13 AM UTC

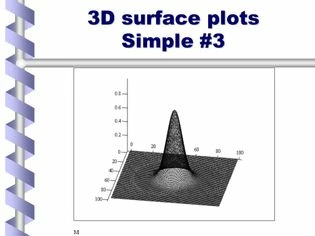

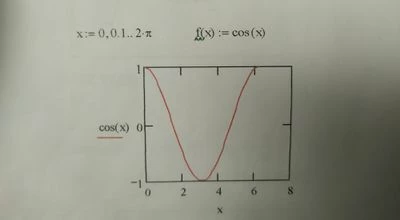

    slide_8.jpgdraw revolved surface using 3D plot. Idea of last out come shape of this. we have to get that shape in that cos(x) : x:= 0,0.1..2pi range. hope you can help.



    Translate
    Werner_E
    Werner_E25-Diamond I
    25-Diamond I
    Jun 21, 2022 11:07 AM UTC

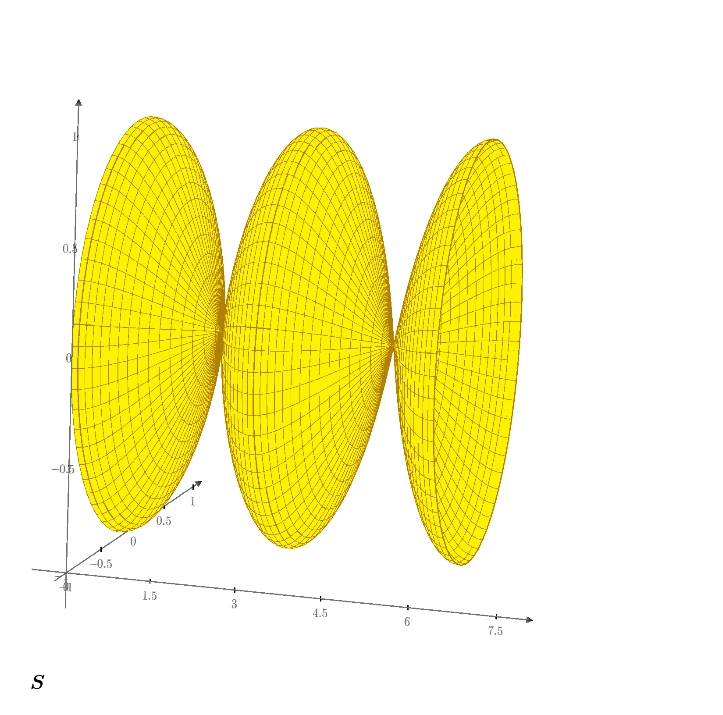

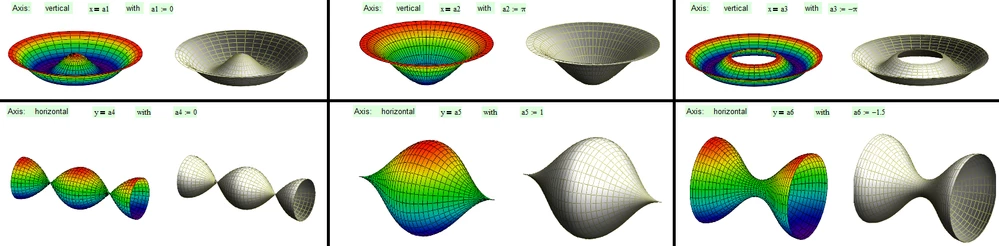

    The 3D plot you show seems not to be from cosine.

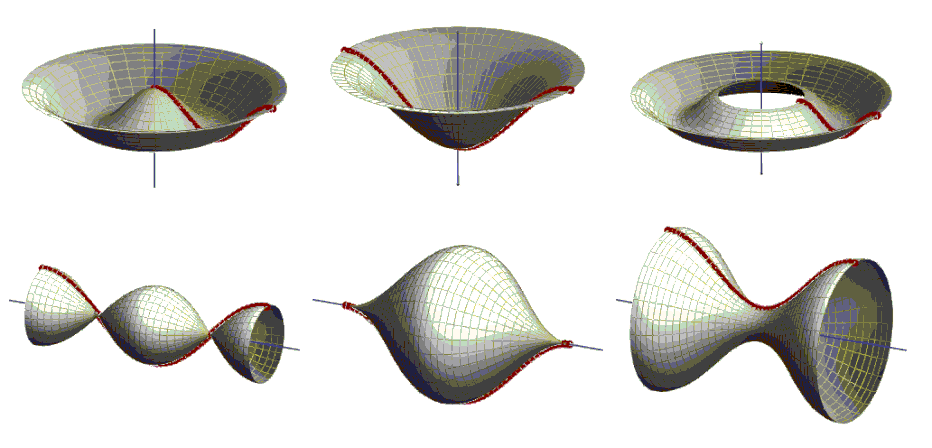

    Furthermore there are so many ways to rotate cos(x) for x from 0 to 2 pi - vertical axis, horizontal axis ...



    Translate
      ttokoro
      ttokoro21-Topaz I
      21-Topaz I
      Jun 21, 2022 11:32 PM UTC


      Translate
      t.t.
        Werner_E
        Werner_E25-Diamond I
        25-Diamond I
        Jun 22, 2022 10:48 AM UTC

        I think its better to use the variables you introduced before when creating the mesh


        I'd prefer a vector function over three separate ones, but that may be a matter of personal taste.



        Its sad that Prime does not offer a way to quickly switch from the bad looking autoscale view


        to a more meaningful "equal scale" view. In real Mathcad its just one click. Actually it can be done in Prime, but its a lot of manual work and fumbling around.




        Its a pity that PTC is not willing/able to implement a 3D plot which is worth using and would offers at least the formatting abilities we were used from real Mathcad. This sure would still not be state of the art, but at least a huge step forward.
