Steam engine: virtual (created in Mathcad) and real

  • May 5, 2014
  • 3 replies
  • 2065 views

Steam engines: virtual (created in Mathcad):

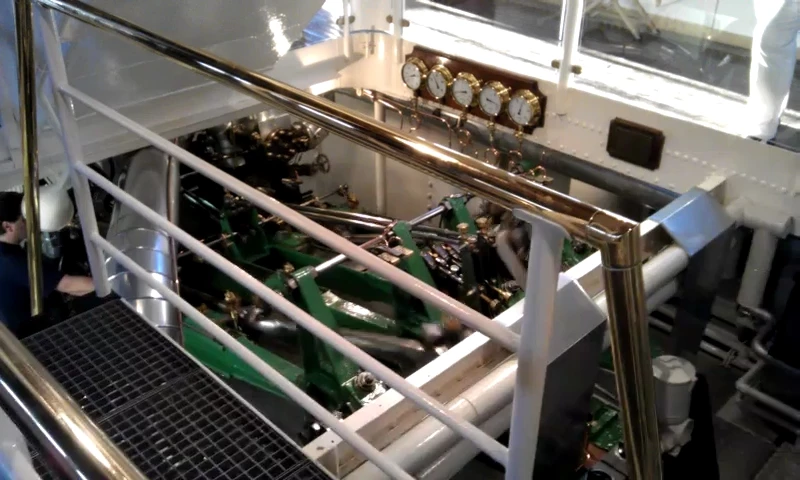

and real - the ship Dresden (3/05/2014).

Created without Mathcad and Creo in 1926.



(view in My Videos)

    3 replies

    V
    24-Ruby IV
    ValeryOchkov24-Ruby IVAuthor
    24-Ruby IV
    May 5, 2014

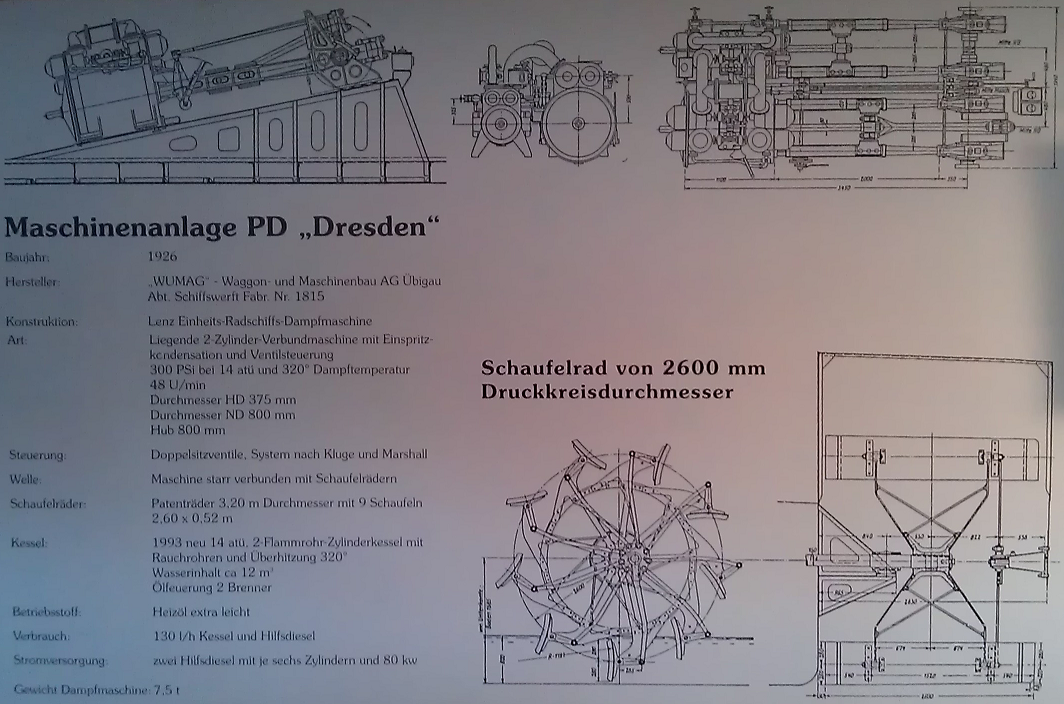

    Parameters of the steam engine:


    V
    24-Ruby IV
    ValeryOchkov24-Ruby IVAuthor
    24-Ruby IV
    May 5, 2014

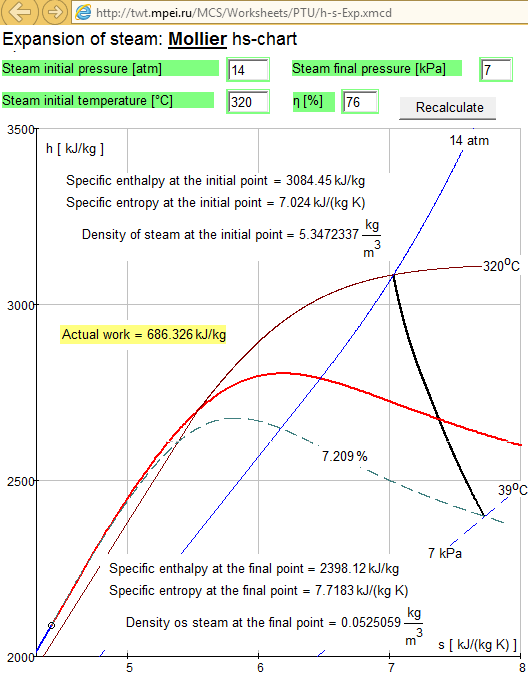

    Calculation of this engine with Mathcad server:


    V
    24-Ruby IV
    ValeryOchkov24-Ruby IVAuthor
    24-Ruby IV
    May 6, 2014

    The hs-diagram (see bellow) is named for Richard Mollier.

    I have visited (after the ship) the house of Mollier in Dresden Tecnical University
