Troubleshooting with several 3d plots in one graph

  • August 2, 2010
  • 2 replies
  • 6418 views

Hi

I have 3 surface plots and one vector that I would like to plot in the same coordinate system.
The situation is the following (axis scales are predefined and fixed):

1) Each plot by itself works fine

2) If I plot one surface plot and the vector the vector is reduced to a dot

3) If I plot a second surface plot to an existing one mathcad does the "divide by zero"-error.

Any help or work around appreciated! (I run Mathcad 14 on 64-bit Windows 7)

2 replies

R
RichardJ19-Tanzanite
19-Tanzanite
August 2, 2010

Please post a worksheet showing the problem.

J
jakoblth1-VisitorAuthor
1-Visitor
August 3, 2010

ok, its a bit messy but its the plot all the way to the bottom

thanks so much for your effort!

R
RichardJ19-Tanzanite
19-Tanzanite
August 3, 2010

Could you add the other two plots you are having trouble with. I have no way of guessing what you typed into the graph placeholder for those.

J
jeanGiraud1-Visitor
1-Visitor
August 4, 2010

If the vector is so short, then scale or otherwise mesh the surface plot on the same scale as the vector.

jmG

J
jeanGiraud1-Visitor
1-Visitor
August 4, 2010

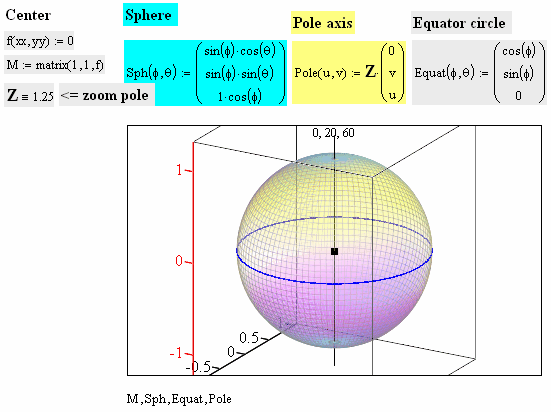

The principle of scaling a vector [pole] and the surface plot.

No matter the type of surfaces and vector, just plot what

you have, if plottable ... You may have to do some re-work.

jmG

J
jakoblth1-VisitorAuthor
1-Visitor
August 4, 2010

Sorry for the inconveniences - new file attached with all the single plots i want to make at the bottom

Scaling solved the Vector problem (might still be incorrect in the attached file but I solved it now)

However, two surface plots in one graph is still a problem.

Maybe the error is the following: when trying to plot in a defualt coordinate system Mathcad always does the divie by zero error which is correct regarding the functions i attempt to plot. I then have to adapt the quickplot data to make it work. But when adding a second surface plot to an existing one it wont let me access the quickplot data anymore for that plot but automatically does the divide by zero error. I can still access quickplot data for plot one.

Thanks for your time!
