Vector Field Graphics

Thanks for the insight. My Mathcad 13 doesn't work on my new computer. I haven't installed Mathcad 15. I have high hopes for Mathcad Prime 3.0. Maybe I'll wait.

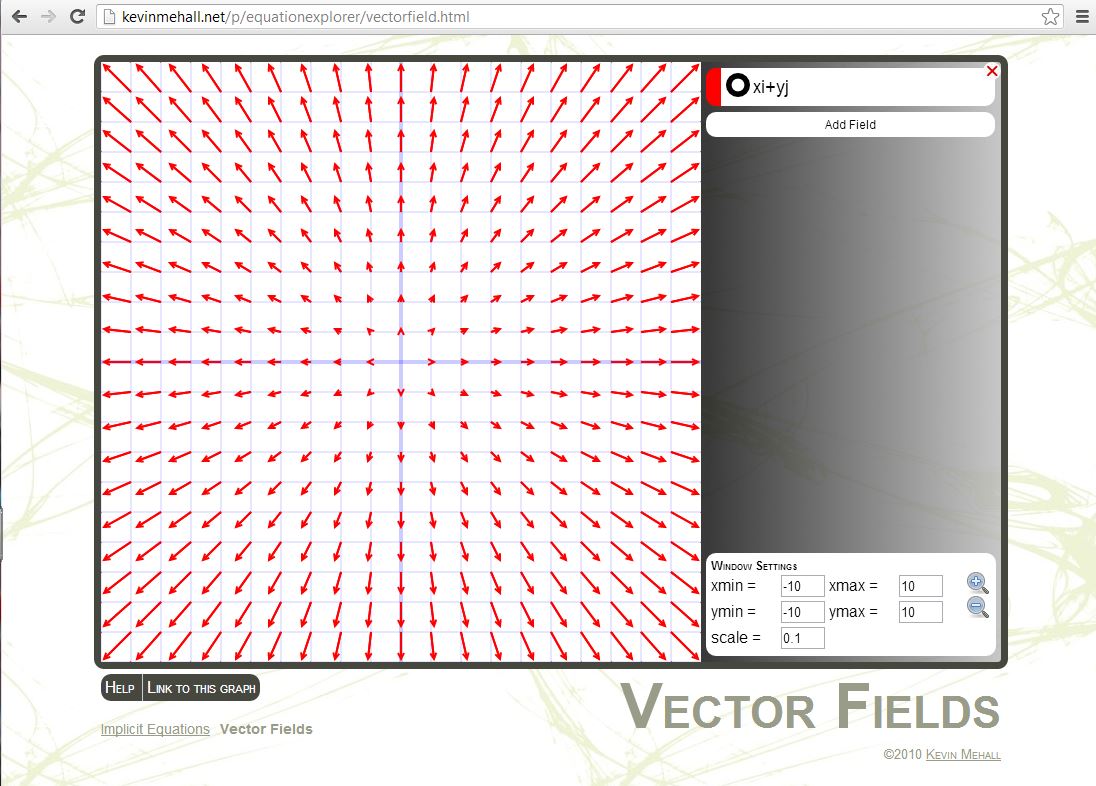

Thomas Orme wrote: I'm reading "div, grad, curl and all that: an informal text on vector calculus" by H. M. Schey. I'm having trouble finding a way to create vector field graphs in Mathcad Prime 2.0. For example: Is it possible to create such graphs in Mathcad Prime 2.0?

It might be possible.

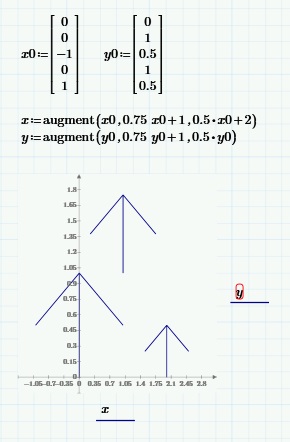

The image below shows x & y basis for drawing an arrow. Augmenting scaled versions of these gives a matrix that can then be plotted using a waterfall plot.

I've only got Prime Express, so can't program a function to handle the translation, rotation and scaling, plus I'm too idle to add rotation in for a demo.

Stuart

I'm glad I started this thread, and thrilled that WE is jumping on the problem. I hope the developers of Mathcad Prime 3.0 are taking notice. The need is great! Let me elaborate.

50 years ago at Harvard I stuggled through Engineering Sciences 105 learning some math, but failing to acquire any knowledge about its use in my career as a microbiologist/biochemist/toxicologist (that was my National Cancer Institute position description).

Then with edX and Coursera I had - in my retirement - time to revisit the unlearned. I passed MIT 6.002x and got a certificate. Now I'm going back to MIT 8.02x with the hope of learning once and for all the significance of Maxwell's equation. I have dabbled unsuccessfully in several couses in Discrete Signal Processing. First there was 6.003z. Now there is Coursera https://www.coursera.org/course/dsp and a second run of 6.003z which is based largely on the work of Alan Oppenheim - http://6003z.amolbhave.in/static/Week1News.html.

In all of these cases I ran into difficulties with Mathcad Prime 2.0. Yet 2.0 has a huge number of functions for signal processing and Mathcad 15 according to comment has vector field graphics covered. The problem there is no user manual coverage of these functions. "Help" is a little help, and occasionally there is a useful example.

This is a problem Mathcad should address. The horror of the otherwise excellent DSP courses cited above is that they require some competence with a math computer program. The suggestion and code when it appears favors Python amd MATLAB. I suspect that half the people who register for the DSP courses can't do the homework because they don't know how to program. I try to succeed with Mathcad, and run into brick walls.

This note is both a plea and a spotlight on opportunity for Mathcad Prime 3.0. WE is doing a great job, but he needs help from PTC.
