Creo View MCAD - Change Color of Component Only Works for Solids

Forum|Forum|3 years ago
May 25, 2022
1 reply
3036 views

In Creo View MCAD, you can change the color of the selected components pretty easily. However, this only seems to work for solids. If some or all of your component is surfaces, those surfaces stay the original color. Is there an easy way to also change the color for surfaces? You can manually select each individual surface to change the color using the right click menu, but that is incredibly tedious to do for hundreds of surfaces.

Creo View

Best answer by BillRyan

It's in the parameters -> miscellaneous area.

B

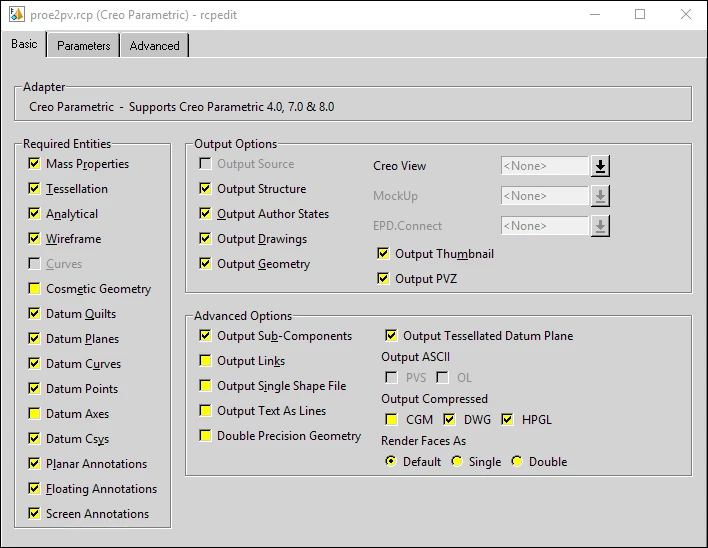

BillRyan
