ProXsecCompXhatchStyleSet&Hatch

Forum|Forum|2 months ago
January 17, 2026
3 replies
489 views

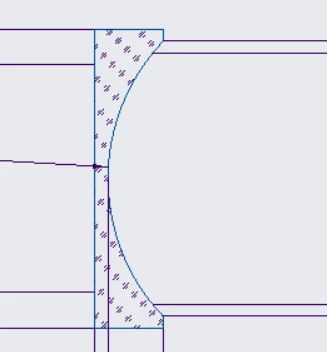

I'm a student and I have a question. Could you please explain how to use the method "ProXsecCompXhatchStyleSet"? I want to change the pattern of the section lines in the perspective view, but I'm not sure how to use this API or how to use other related APIs. Can someone help me?

Creo Student Edition

24-Ruby III

From "Help Center" - "Function ProXsecCompXhatchStyleSet": https://support.ptc.com/help/creo_toolkit/protoolkit_pma/r11.0/usascii/index.html#page/creo_toolkit/api/dita/6407.html

Community Manager

Community Manager

Hello @ML_14468763,

It looks like you have a response from a community expert. If it helped you solve your question please mark the reply as the Accepted Solution.
Of course, if you have more to share on your issue, please let the Community know so other community members can continue to help you.

Thanks,
Vivek N.
Community Moderation Team.

5-Regular Member

5-Regular Member

ProXsec p_xsec;

ProError status;

ProColor warning_color;

ProXsecNewXhatchStyle p_xhatch_style{};

warning_color.method = PRO_COLOR_METHOD_TYPE;

warning_color.value.type = PRO_COLOR_WARNING;

status = ProXsecNewXhatchStyleCreateFromName(L"Wood", warning_color, PRO_XHATCH, &p_xhatch_style);

if (status != PRO_TK_NO_ERROR)

return;

ProXSectionItem* xsec_item_arr;

ProXsecMdlname p_xsecmdlname;

status = ProXsecMdlnameAlloc(xsecMdl, p_xsec.xsec_name, &p_xsecmdlname);

if (status != PRO_TK_NO_ERROR)

return;

status = ProXSectionItemsCollect(p_xsecmdlname, NULL, &xsec_item_arr);

if (status != PRO_TK_NO_ERROR)

return;

int n_xsec_items = 0;

status = ProArraySizeGet((ProArray)xsec_item_arr, &n_xsec_items);

for (int ii = 0; ii < n_xsec_items; ii++)

{

status = ProXSectionItemXhatchStyleSet(xsec_item_arr[ii], item.view, L"Wood", &p_xhatch_style);

}

status = ProXSectionItemsArrFree((ProXSectionItem**)&xsec_item_arr);

ProXsecRegenerate(&p_xsec);

10-Marble

@XC_14458268 Thank you so much, I was stuck into this finally got it right.

5-Regular Member

5-Regular Member

You're welcome! I happened to be looking into this as well. Glad you got it sorted!
