Question

Create Scale note for each view

  • June 10, 2024
  • 3 replies
  • 1169 views

Hi

In my drawing i have place 3 types of view with different different scales and I deleted the default scale note but now i need to create a new scale note for each views again. Suggest me with a best way to create that note again easily.





Ramaniedharan R





3 replies

tbraxton
22-Sapphire II
tbraxton22-Sapphire II
22-Sapphire II
June 10, 2024

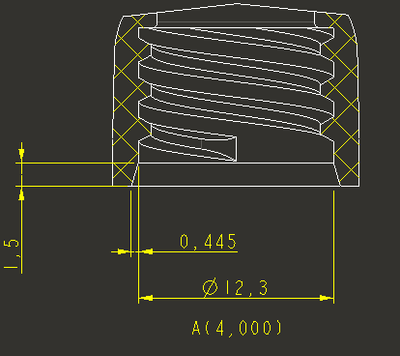

There are some parameters for scale available in drawing mode. This is for a detailed view "A" with a scale of 4





The syntax of the note shown above will look like this in a text editor.



{0:&view_name}(&det_scale)



In general use this:

The drawing parameter scale_of_view_x evaluates the drawing scale of whichever view has name X.
For example, to call out the scale of a view named DETAILED_BAR, type &scale_of_view_detailed_bar.



    kdirth
    21-Topaz I
    kdirth21-Topaz I
    21-Topaz I
    June 10, 2024

    Change view back to Default scale for sheet and apply, then change the scale back to the desired Custom scale.

    There is always more to learn.
    V
    vnamboodheriCommunity Manager
    Community Moderator
    June 17, 2024

    Hello @RR_10572109,
