Tracking-down a circular reference in Creo 4

  • August 29, 2023
  • 3 replies
  • 1737 views

Hello,

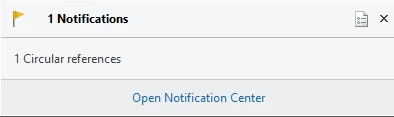

How to track-down a circular reference in a component inside an assembly?

I'm using Creo Parametric 4 M150








Best answer by StephenW

Creo generates a text file in your working directory with the extension .crc that gives information on the circular reference.

Or

Use the reference viewer in the assembly and it will show the circular reference also.

3 replies

S
23-Emerald III
StephenW23-Emerald IIIAnswer
23-Emerald III
August 29, 2023

Creo generates a text file in your working directory with the extension .crc that gives information on the circular reference.

Or

Use the reference viewer in the assembly and it will show the circular reference also.

    K
    KenFarley21-Topaz II
    21-Topaz II
    August 29, 2023

    If you look in the directory where you are working, you'll notice that whenever Creo finds such circular references it writes a file with the extension ".crc". That file will list all the offending features that comprise the circular reference. Hopefully the information provided in the file will be helpful - if I remember correctly it references Feature ID numbers.

      tbraxton
      22-Sapphire II
      tbraxton22-Sapphire II
      22-Sapphire II
      August 29, 2023

      As mentioned by @StephenW , the reference viewer is the tool for this. These snapshots are from part mode, but it works the same way in assembly mode.
