Integration Windchill and Vuforia Studio

  • July 16, 2024
  • 2 replies
  • 1304 views

Hey Community,



Is there any possible way to integrate Windchill and Vuforia studio. My use case here is, I need to list out all the available 3D model available in Windchill into Vuforia Studio screen, based on user selection I need to show 3D model in 3D Model widget. This question has already been asked in forum but i still could not find a right answer and definetly need more insights into this topic. Please give your valuable feedback.







Regards,

JA

2 replies

R
RolandRaytchev21-Topaz I
21-Topaz I
July 16, 2024

Hi @MA8731174 ,

you can download data possibly directly from windchill or other server but that will not work because of CORS. So means that Vuforia View will not allow a call via different domains. so therefore the supported way is to use Windchill data --> to Thingworx repository --> Vuforia Studio

Here I want to refer to point 1.) of that post : https://community.ptc.com/t5/Vuforia-Studio/Is-there-a-way-to-load-3D-model-from-Thingworx-repository-to/td-p/961474

Thanks

R
RolandRaytchev21-Topaz I
21-Topaz I
July 16, 2024

for the Integration  from  windchill to TWX - so the step is to export first from Windchill the  pvz files as export to folder  - as the part what is visualization /Windchill adapter could be seen in the article   https://www.ptc.com/en/support/article/CS112832

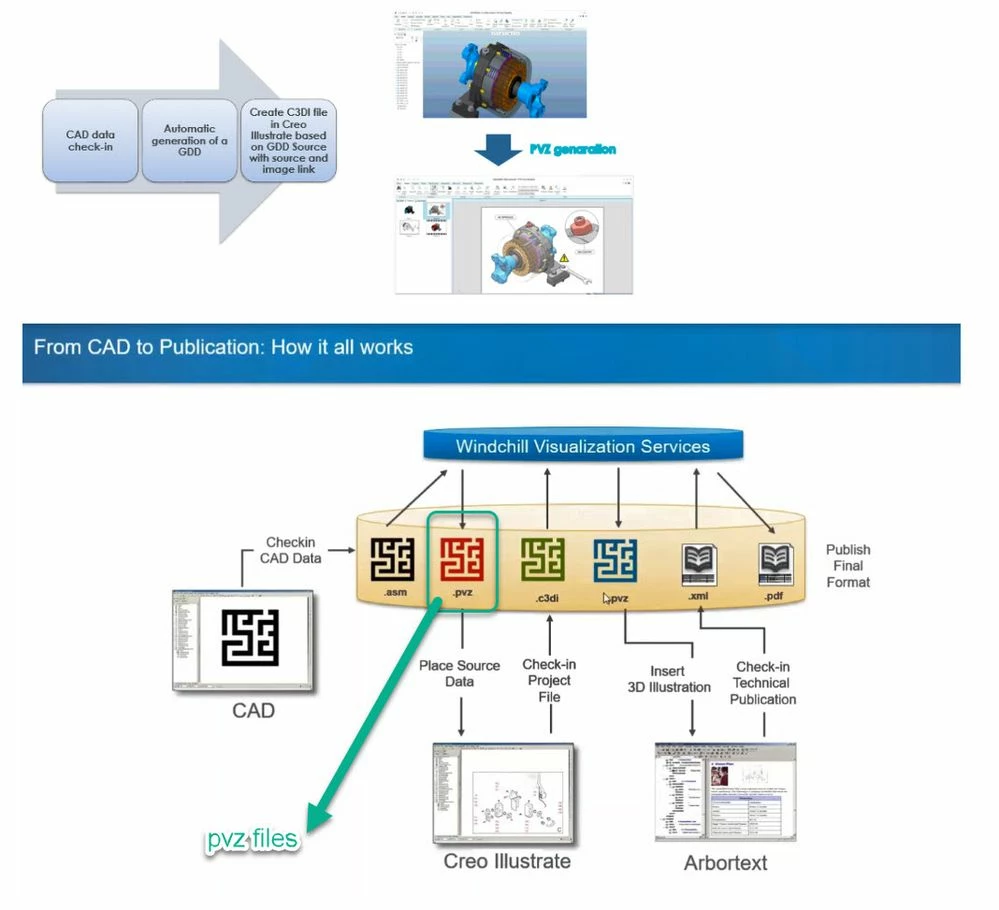

  1. In Windchill, if GDD is enabled, export pvz file generated by Creo View Adapters.
  • How to create a Graphics Dynamic Document (GDD) that can be opened in IsoDraw or in Creo Illustrate from Windchill ?
  • Can Creo Illustrate be integrated with Windchill PDMLink to load published CAD representations?
  • How to create a PVZ automatically after publishing a CAD Document, that can be imported into Creo Illustrate?
  • How to generate a Publication Graphic or Dynamic Document published automatically for use in Creo Illustrate?
  • How to publish representation to pvz format
  • A workflow from initiation to completion





    Res:



  1. Configure  post-publishing
  2. See Post-Publishing in the WVS Publish Rules chapter of the Windchill 12.0.2.0 Visualization Services Administrator’s Guide for details
    • This provides an overview of post-publishing, along with a description of the four kinds of PostPublishdelegates. The code that can be executed is called a PostPublishDelegate
    • Post-publishing is the process of executing delegated code after a representation has been successfully created and stored
    • Generically the EPMPostPublishDelegate can handles any authoring application
      • Once publishing of an EPMDocument is complete and a representation is stored, the EPMPostPublishDelegate:
        1. Creates a Creo View archive file (PVZ) of the representation’s content
        2. Stores the PVZ on a new EPMDocument - a Dynamic Document (or Arbortext Authored Dynamic Document, for Arbortext)
        3. Additionally, if the Dynamic Document already exists, the delegate code iterates the
          Dynamic Document, thus providing a means to track the history through the iteration
          history of the Dynamic Document.
        • Note: This is done to give enterprise control and visibility of the published content separately from the Dynamic Document structure, while maintaining a record of the association through a PublishedContentLink.
      • requres to create an custmized class , please see also  the WCVisualizationServiceGuideHelp

-pvz file could be loaded e.g. in Thingworx to a folder in FileRepository thing with fileupload widget or using some javascript automatization
