Free classification images

Can anyone recommend where to obtain free classification images (fasteners, etc.)?

avillanueva
avillanuevaAnswer
23-Emerald II
December 20, 2024

We made our own by taking a representable model from Creo and rendering it with a white background. You want to make sure you get the pixel ratios right so that it looks good. I do not know of any "free" sources but if you google images and filter for Creative Commons, those can work.

View in thread

6 replies

Catalina
CatalinaCommunity Manager
Community Moderator
December 20, 2024

Hi @msteed



Thank you for your question!



I’d like to recommend to bring more details and context to your initial inquiry.

It also helps to have screenshot(s) to better understand what you are trying to do in your process.



Please refer to this guideline to make your questions more likely to receive a quick and useful answer.

This will increase your chances to receive meaningful help from other Community members.



Thank you for your participation and please let me know if you need further assistance!



Best regards,

Translate
Catalina | PTC Community Moderator
msteed13-AquamarineAuthor
13-Aquamarine
December 20, 2024

Thank you, Catalina.

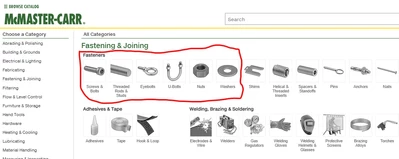

To further clarify my question, we are developing a Windchill PartsLink classification tree for our common parts library (fasteners, etc.) and would like to add images to the tree branches. This would make the user experience similar to browsing the McMaster-Carr catalog.

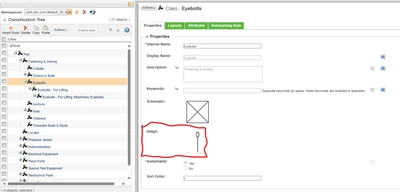

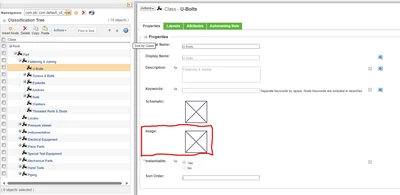

Windchill Classification Tree Image:




One possible solution, recommend by one of our managers, would be to use images cut from our existing CAD (Creo) model views.






This would likely work well. Nonetheless, does anyone have any other recommendations for free sources for these images?



As of this writing, our organization is using Windchill 12.1.2.8.



Best regards,



Matt

Translate
avillanueva
avillanueva23-Emerald II
23-Emerald II
December 20, 2024

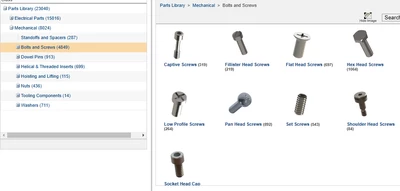

That is what we did. You want to have a consistent look and ensure that the image is visually distinct so users can make use of the images to narrow things down.

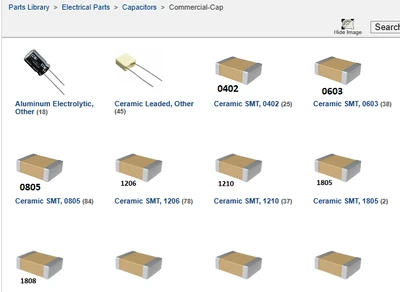

For electrical components it was tougher. I ended up adding some bold text to make them distinguishable. Just know that you can refine this over time. Keep a cache somewhere as a resource but don't let this stall your progress.






Translate
    avillanueva
    avillanueva23-Emerald IIAnswer
    23-Emerald II
    December 20, 2024

    We made our own by taking a representable model from Creo and rendering it with a white background. You want to make sure you get the pixel ratios right so that it looks good. I do not know of any "free" sources but if you google images and filter for Creative Commons, those can work.

    Translate
      msteed13-AquamarineAuthor
      13-Aquamarine
      December 20, 2024

      Thank you, @avillanueva.



      I greatly appreciate your recommendations.



      Matt

      Translate
