Playing with an OOTB windchill 9.1 M030 install and I have a question.



I have a CAD Document associated to a wtpart.



When I go to the information screen of the CAD Document, I can do a
"RELATED OBJECTS > Parts" and it will show me the related wtpart.



When I am in the information screen for the wtpart and I want to find
the related CAD Document, there does not seem to be a menu item for it.

I see "Documents" under "RELATED OBJECTS" and it does not show the CAD
Documents.



I called PTC help and so far, no answer from them.



Am I missing something here?

How can one find the related CAD Document of a wtpart?



Thanks for your help.





---

Andrew Yap
-



11 replies

M
MikeLockwood22-Sapphire I
22-Sapphire I
February 9, 2011
From the WT Part, select the Structure tab, then select the Part(s) and Show Documents. Can also select Related Objects, CAD/Dynamic Documents (Dynamic Documents are Arbortext).
A
achukwuka1-Visitor
1-Visitor
February 9, 2011
That is abnormal, because from the wtpart information page you should see "CAD Document" as an option under "related object".

Thanks

Alexius C. Chukwuka
Infrastructure Analyst
JDPS Division SAP BASIS Team
John Deere Power Systems
Phone: (309) 765-3133
Email: -

From: Lockwood,Mike,IRVINE,R&D [
A
achukwuka1-Visitor
1-Visitor
February 9, 2011
Sorry, I forgot to ask you, if you have done any customizations to that page?

Alexius C. Chukwuka
Infrastructure Analyst
JDPS Division SAP BASIS Team
John Deere Power Systems
A
ayap10-MarbleAuthor
10-Marble
February 9, 2011
This is an OOTB test system. So no customization.



Thanks for your replies.



I guess the workaround is to "Show Documents" in "Structure"



---

Andrew Yap
GE Aviation

Aviation Systems
Landing Gear and Actuation PECoE

T +1 973-560-6726
F +1 973-884-2277
-

110 Algonquin Parkway
Whippany, NJ 07981-1640
GE Aviation Systems LLC

GE imagination at work
A
achukwuka1-Visitor
1-Visitor
February 9, 2011
Yes, that will work as well. But it concerns me though that you are not able to see the "Cad Doc" option under "related objects" while on a part info page. That is supposed to be OOTB....

Alexius C. Chukwuka
Infrastructure Analyst
JDPS Division SAP BASIS Team
John Deere Power Systems
A
ayap10-MarbleAuthor
10-Marble
February 9, 2011
Alex,



Your concern is noted. Will dig more into this....



---

Andrew Yap
GE Aviation

Aviation Systems
Landing Gear and Actuation PECoE

T +1 973-560-6726
F +1 973-884-2277
-

110 Algonquin Parkway
Whippany, NJ 07981-1640
GE Aviation Systems LLC

GE imagination at work
D
dwilliams1-Visitor
1-Visitor
February 9, 2011
Hi Andrew,
This option may be filtered out in one of the following locations:

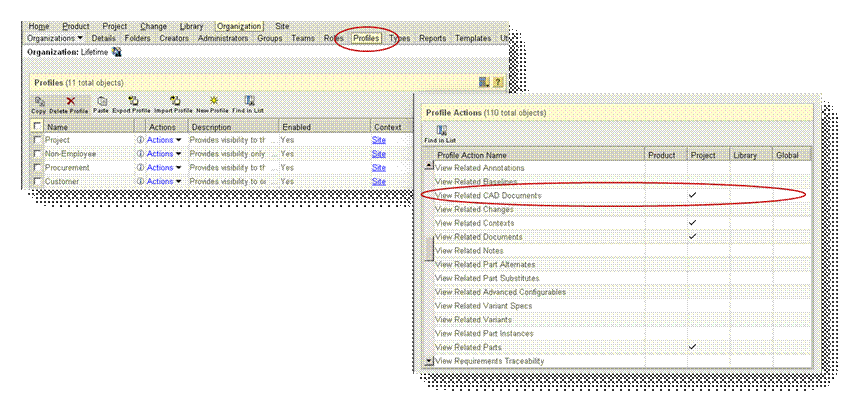

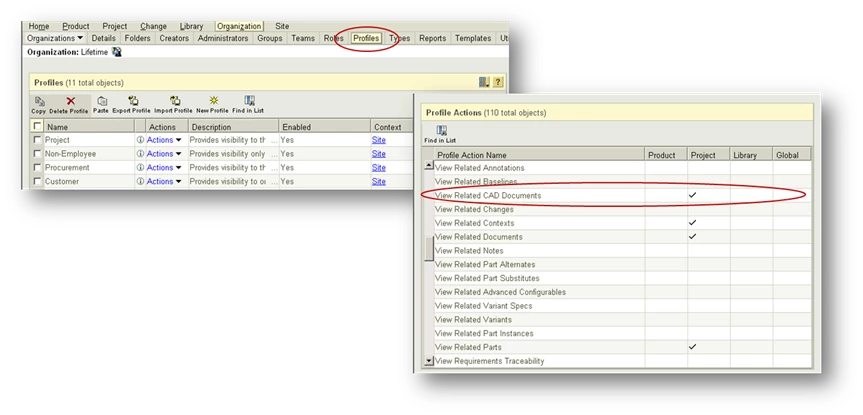

Profile Actions set at the Org or Site
[Profiles.png]

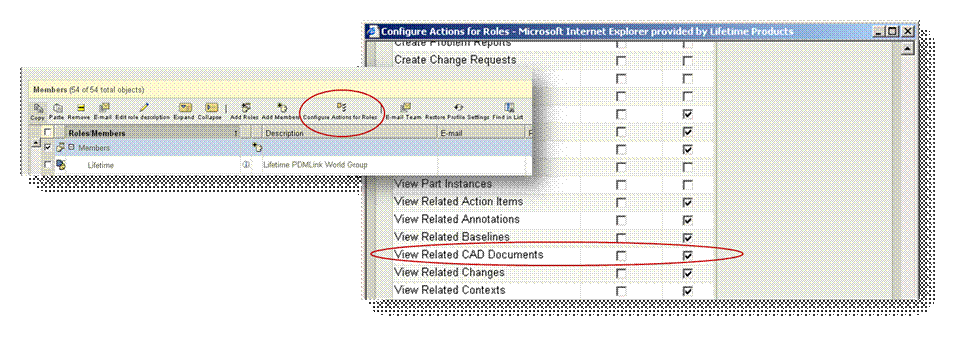

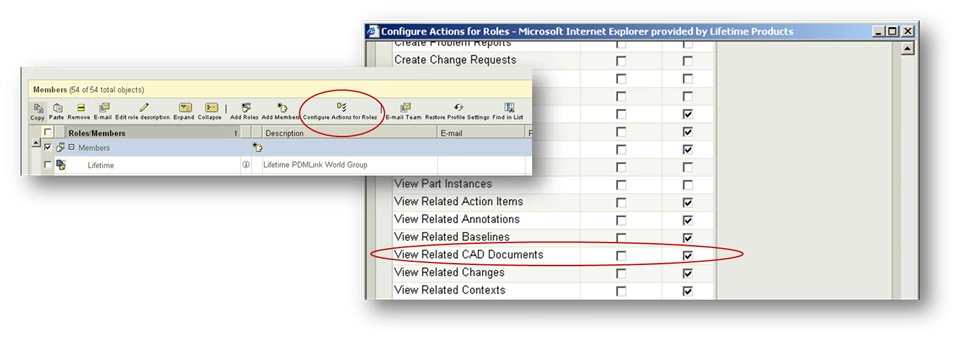

"Actions for Roles" set at the Context Team
[Actions for Roles.png]



From: Yap, Andrew (GE Aviation, US) [
A
ayap10-MarbleAuthor
10-Marble
February 9, 2011
You guys are amazing. This solved the problem.

The CAD Documents was showing for Products, but not for Libraries. I
added the check in the profile for CAD Authors and I now see the menu.



Thanks to all.



---

Andrew Yap
GE Aviation

Aviation Systems
Landing Gear and Actuation PECoE

T +1 973-560-6726
F +1 973-884-2277
-

110 Algonquin Parkway
Whippany, NJ 07981-1640
GE Aviation Systems LLC

GE imagination at work
A
achukwuka1-Visitor
1-Visitor
February 9, 2011
Awesome.

Alexius C. Chukwuka
Infrastructure Analyst
JDPS Division SAP BASIS Team
John Deere Power Systems
M
MikeLockwood22-Sapphire I
22-Sapphire I
February 9, 2011
The OTB Profiles are very aggressive - and it's not intuitive to go look at them for things like this not showing.

We came to the conclusion that only Two Profiles for the whole system was enough complexity.
