My company has recently switched from Solid Works to Creo 2.  In SW you can crete a 3D sketch by simply drawing lines and arcs and then constraining them to lock location.  We then use a Sweep feature to create cores through a casting.  The only way I know to do this in Creo is to create a series of points and connect the dots.  This seems like a LOT of trial and error on location.  Is there another way to create 3D sketches on the fly?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
    Best answer by TomD.inPDX

    I really like the 3D sketch capability in SW.  I really miss this capability in Creo.  The closest you come to this in parametric is intersects, or just make surface features and use their edges to define sweep paths.  For instance, the example you provided can be a curves surface with a vertex round.

    You also want to use reference curves.  These can be an otherwise unrelated set of curves that become a single feature for features such as sweep.  I've found this useful when you have multiple intersects that need a single contiguous path for the sweep that may only be parts of intersected curves.

    2 replies

    D
    dbolden1-VisitorAuthor
    1-Visitor
    August 21, 2015

    CORING EXAMPLE.jpg

    Here is an example of a 3D sketch which would be used to create a core similar to the completed ones you see.  We make the in inner and then offset or create outers from the inner.  We then do a subtract to leave us the outer housing.

    T
    TomD.inPDX17-Peridot
    17-Peridot
    August 23, 2015

    This is a little different mindset from SW.  Edges are as good as curves for sweep paths.

    The surface can be hidden or managed with layers.

    Creo has some powerful ways to help "nullify" reference geometry using intelligent layer rules.


      T
      TomD.inPDX17-PeridotAnswer
      17-Peridot
      August 23, 2015

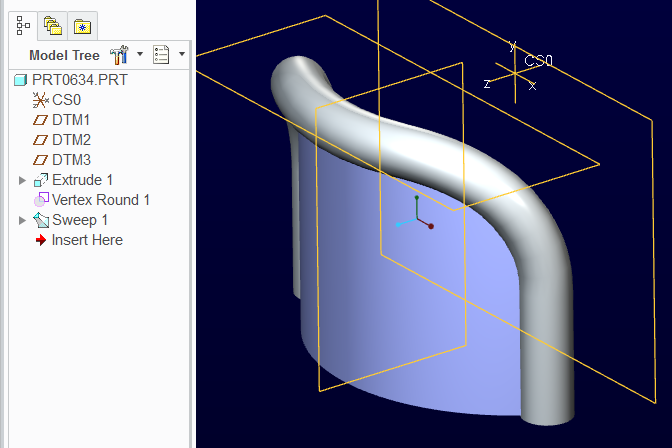

      I really like the 3D sketch capability in SW.  I really miss this capability in Creo.  The closest you come to this in parametric is intersects, or just make surface features and use their edges to define sweep paths.  For instance, the example you provided can be a curves surface with a vertex round.

      You also want to use reference curves.  These can be an otherwise unrelated set of curves that become a single feature for features such as sweep.  I've found this useful when you have multiple intersects that need a single contiguous path for the sweep that may only be parts of intersected curves.
