Add a dimension to a table

  • March 22, 2017
  • 2 replies
  • 4996 views

Hello,



  I have several start parts that I use to design fixtures.  One is a simple dowel pin 6.35 mm dia.

I want to create a parameter that would display in a table the diameter which will always be 6.35 mm and the length which would vary.

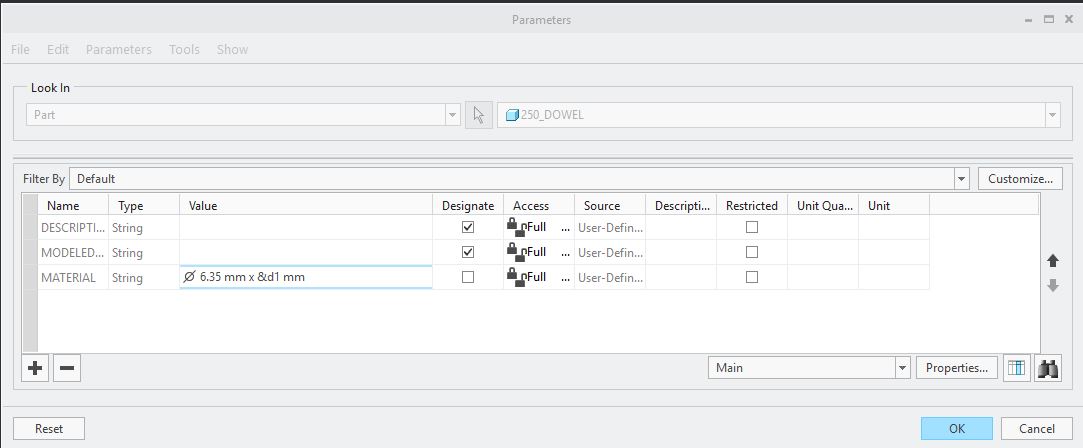

The capture below is what I tried but it displays in my table just as typed and does not display the d1 dimension which is my length.

Anyone have any advice on the proper syntax to use?

I am using Creo 4.0






Best answer by MartinHanak

Hi,

if length is always integer value, then you can apply following relation

MATERIAL = "ø 6.35 mm x " + itos(d1) + " mm"

MH

2 replies

B
BenLoosli23-Emerald III
23-Emerald III
March 22, 2017

d1 is a value, not a string. You will have to convert it to a string.

There have been many topics in the Community on doing this. Here are just 2:

Converting Real Numbers to Strings

How To: Format a real number relation in a note?

    M
    MartinHanak24-Ruby IIIAnswer
    24-Ruby III
    March 23, 2017

    Hi,

    if length is always integer value, then you can apply following relation

    MATERIAL = "ø 6.35 mm x " + itos(d1) + " mm"

    MH

      B
      bjoyner1-VisitorAuthor
      1-Visitor
      March 23, 2017

      Thanks for the help.  That worked perfect for me.

      If you wouldn't mind is there a way to control the decimal places?

      It is rounding my d1 value to the nearest whole number.

      M
      MartinHanak24-Ruby III
      24-Ruby III
      March 23, 2017

      Hi,

      see links provided by Ben Loosli.

      MH
