Adding labels to cables

  • September 3, 2015
  • 1 reply
  • 3926 views

Hi,

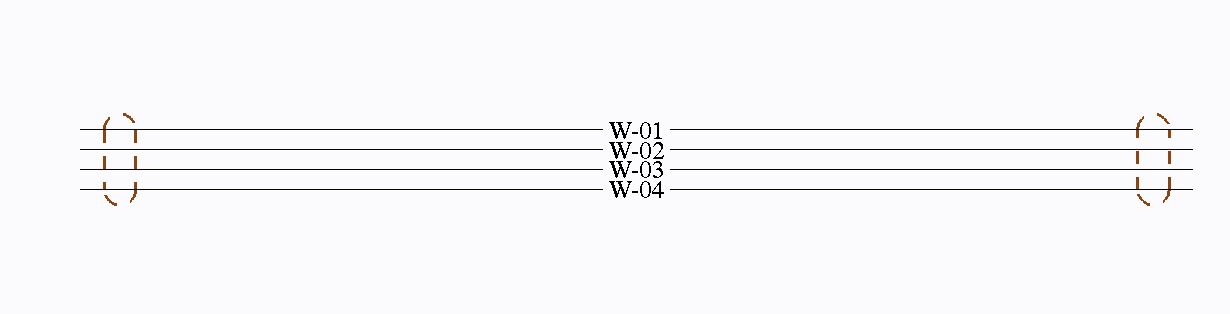

I've made a custom cable, and I've added a label to, it should show the part number of the cable, however if I route the cable the label is not there, it doesn't appear at all. What should I do?



Regards,

Laszlo


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by JimBarrettSmith

Laszlo

Firstly you will need to upgrade to Creo Schematics 3.0 M020

In the catalog explorer open the cable shape, select the cable decoration, and add the label.

Your label will then appear when you place the cable and will move with the cable decoration

See the attached movie

thanks, Jim

1 reply

J
JimBarrettSmith5-Regular MemberAnswer
5-Regular Member
September 3, 2015

Laszlo

Firstly you will need to upgrade to Creo Schematics 3.0 M020

In the catalog explorer open the cable shape, select the cable decoration, and add the label.

Your label will then appear when you place the cable and will move with the cable decoration

See the attached movie

thanks, Jim

G
glászló1-VisitorAuthor
1-Visitor
September 3, 2015

Dear Jim,

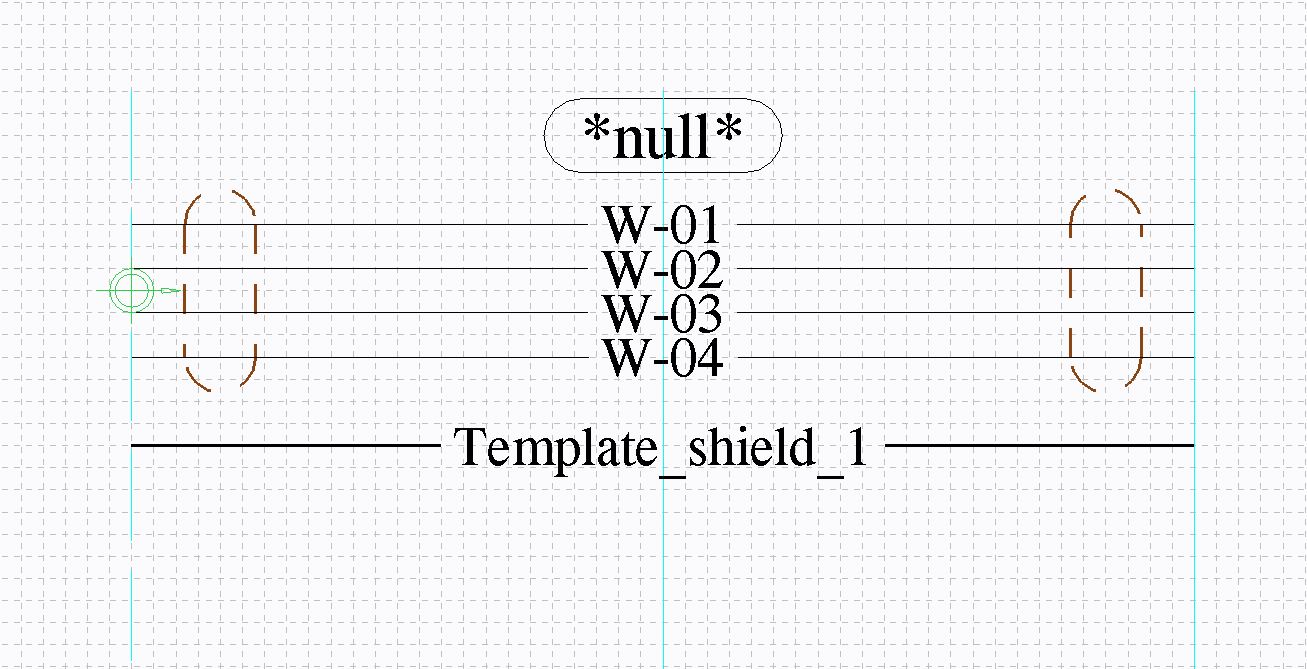

How can I get the update? Currently I have the M010 version. After updating Is it possible to add the label to the cable itself (see on photo) not to the decoration?

Thanks,

Laszlo

J
JimBarrettSmith5-Regular Member
5-Regular Member
September 3, 2015

Laszlo

You can download M020 from the software update page https://support.ptc.com/appserver/common/login/ssl/login.jsp?dest=%2Fappserver%2Fcs%2Fsoftware_update%2Fswupdate.jsp&msg…

The label has to be attached to the decoration

thanks

Jim
