Assembly cuts in a part - how to track them down

  • June 2, 2015
  • 5 replies
  • 1732 views

I have a part that had some holes show up on them. I have track down the errant holes to some assembly cut features.

How do you track down where these assembly cuts were made?

the tree showing the assembly cuts

  two unwanted holes that are the result of the assembly cuts.

Thanks, Dale


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by dschenken

Reference viewer not showing them?

5 replies

dschenken1-VisitorAnswer
1-Visitor
June 3, 2015

Reference viewer not showing them?

Dale_Rosema
Dale_Rosema23-Emerald IVAuthor
23-Emerald IV
June 3, 2015

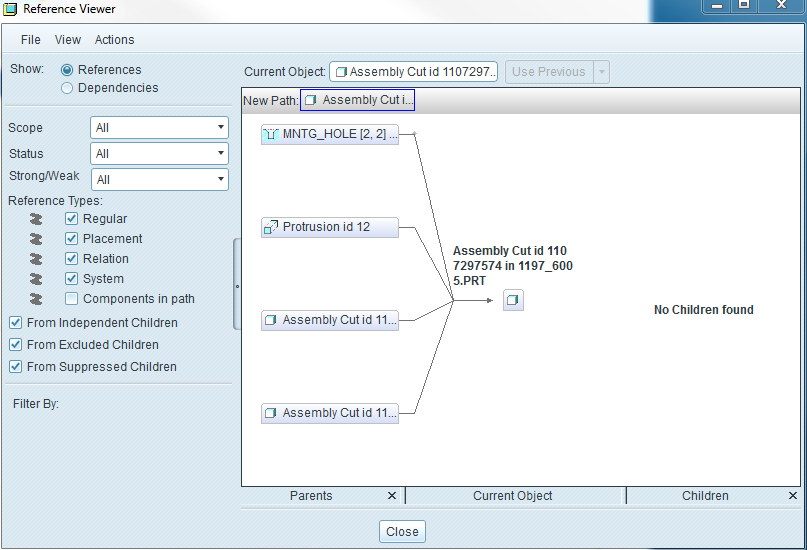

This is what I am seeing.

StephenW
StephenW23-Emerald III
23-Emerald III
June 3, 2015

Make the column wider. where the ... is in the parents tells you where the assembly cut is made.

OR right click on the feature and do an INFO.

REF VIEW.jpg

MartinHanak24-Ruby III
24-Ruby III
June 3, 2015

Dale,

select assembly cut in model tree of the part, press right mouse button and click Info > Feature. Creo displays information in browser window. In Comments section you will find requested information ... FEATURE WAS CREATED IN ASSEMBLY YourAssembly.
