Basic question about drawing

  • March 20, 2015
  • 7 replies
  • 2937 views

Hello all,

My question is about drawing. It is a basic question, but I can't figure it out :

I made a drawing of a part (so far easy...) :

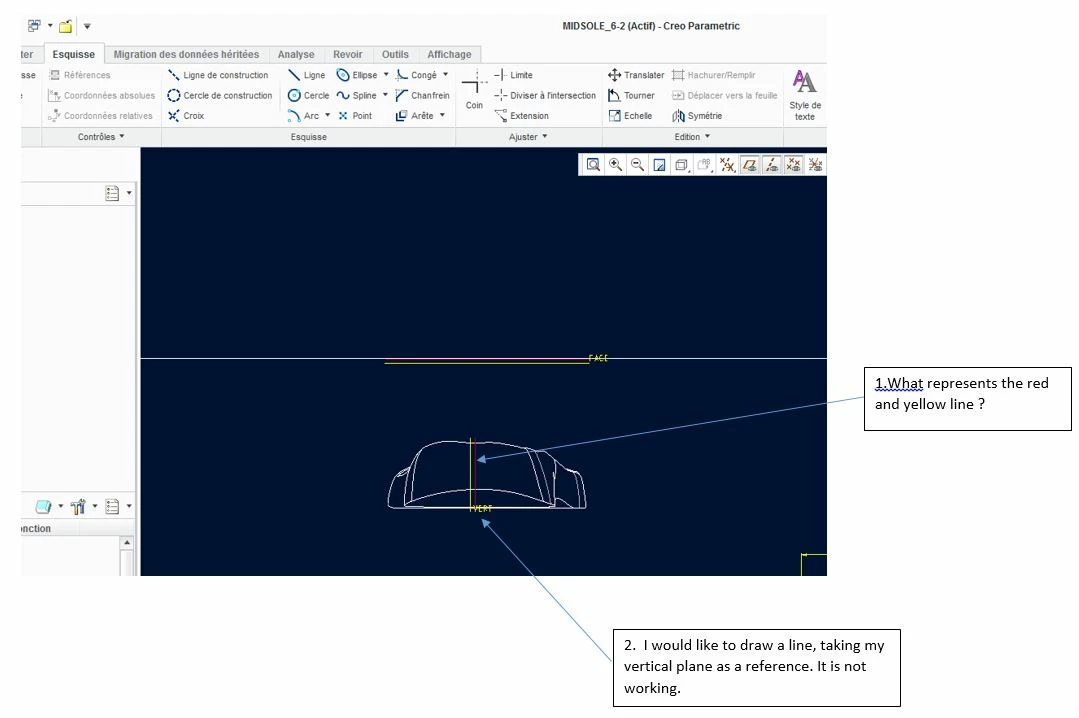

1. I have enabled the plan view : Why are there a red and yellow line ?

2. I would like to draw a line, taking the plan as a reference : is it possible ?

Thanks a lot for your help,


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by rohit_rajan

select the particular plane part

right click and select properties

select either ansi or iso datum

now when you see the plane in drawing

it will be a single line with the datum symbol

offcourse you still have to hide the planes from the display filters.
