All,

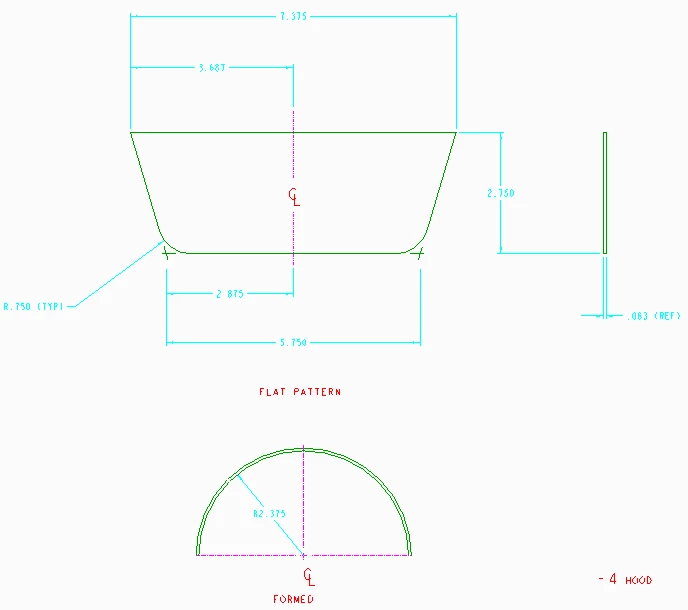

Given the attached drawing. What id the best way to go from flat to formed?

I'd like it to be in sheet metal. I have been given a Toroidal Blend option, which appears to work. But I am wondering if there is a sheet metal option? Bend gets me nowhere.

By the way, I suspect that R given is incorrect and should be doubled?

WayneF

Creo 3.0 M020

Best answer by psobejko

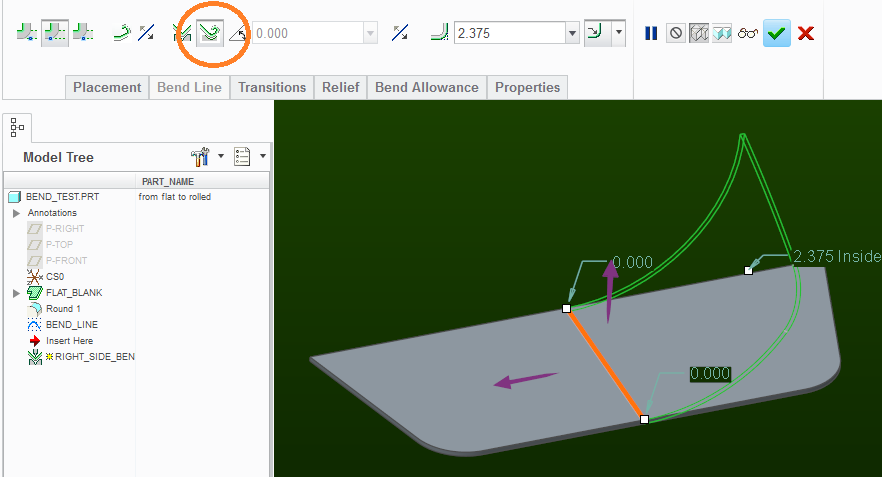

Try using the "Bend to end of surface" option in the bend tool:


I had to use two bends (bent the left and right side up from the centerline) to get the full form.  There might be a better way to do this with just a single bend.

3 replies

T
TrainStopper12-Amethyst
12-Amethyst
January 12, 2017

Maybe unorthodox, but one way would be to start a sheet metal part from scratch, extrude the curved final shape (this would be a simple half cylinder), unbend, cut the profile to match your flat pattern, then bend back. Working with sheet metal my strong preference is to model the final bent part then flatten it rather than starting with the flat and trying to bend it to obtain the final part.

Alternatively, you can sketch your flat and add a bend at one edge selecting to the end of surface, but I don't like working that way.

    W
    wfalco16-PearlAuthor
    16-Pearl
    January 12, 2017

    I could go the opposite route. However, I am interested in how it can be done from flat. Thanks.

    P
    psobejko1-VisitorAnswer
    1-Visitor
    January 12, 2017

    Try using the "Bend to end of surface" option in the bend tool:


    I had to use two bends (bent the left and right side up from the centerline) to get the full form.  There might be a better way to do this with just a single bend.

    S
    23-Emerald III
    StephenW23-Emerald III
    23-Emerald III
    January 12, 2017

    It's been so long since I have done real sheetmetal work, nothing in Creo looks familiar.

    Used to you had 3 options, bend to the right, left and bend middle (in other words, the bend centerline).

    Has that gone away?

    W
    wfalco16-PearlAuthor
    16-Pearl
    January 12, 2017

    It's all there. But....not as you left it. LOL. Thanks.

    S
    23-Emerald III
    StephenW23-Emerald III
    23-Emerald III
    January 12, 2017

    Oh the bend radius specified is probably correct. Just a quick look at it and the form to flat calculation was very close...it all depends on operations and material.

    W
    wfalco16-PearlAuthor
    16-Pearl
    January 12, 2017

    hmmm. thanks.
