Solved

Bold Tolerance

  • February 8, 2019
  • 10 replies
  • 6740 views

All,



Why am I getting bold plus/minus on some dims in my drawing, but not all? See attached.



Wayne



Please Note:



I am in drawing mode. The model is a dumb import. I am using create dimensions. One some they are bold, some not.



Ah...news flash! This is only occurring on symmetric tols.!?



Best answer by wfalco

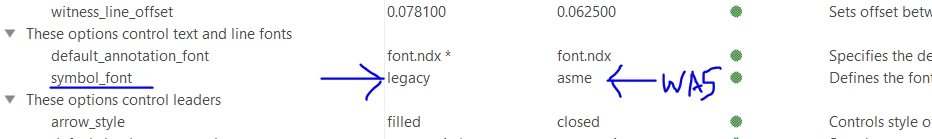

Attached fixed my problem.

10 replies

StephenW
StephenW23-Emerald III
23-Emerald III
February 8, 2019

I can't remember (or find) where I saw that recently.

Maybe this but it doesn't look right.

https://community.ptc.com/t5/Detailing-MBD-MBE/Symbol-appearance-after-Creo-upgrade/m-p/592129

StephenW
StephenW23-Emerald III
23-Emerald III
February 8, 2019

or maybe

https://community.ptc.com/t5/Detailing-MBD-MBE/Creo-4-0-Bolds-Special-Characters/m-p/577753

M
MartinHanak24-Ruby III
24-Ruby III
February 8, 2019

Hi,

see http://support.ptc.com/help/creo/creo_pma/usascii/index.html#page/whats_new_pma/detail-mbd-SymbolConfigOption_2.html

Note: I am not sure whether stroked_asme, stroked_iso values are available in Creo 4.0.

W
wfalco16-PearlAuthor
16-Pearl
February 8, 2019

Please Note:



I am in drawing mode. The model is a dumb import. I am using create dimensions. One some they are bold, some not.



Ah...news flash! This is only occurring on symmetric tols.!?

W
wfalco16-PearlAuthorAnswer
16-Pearl
February 8, 2019

Attached fixed my problem.

StephenW
StephenW23-Emerald III
23-Emerald III
February 8, 2019

Choose your answer as the solution so the next person can find it easy

W
wfalco16-PearlAuthor
16-Pearl
February 8, 2019

Will do. Hope it really is the answer. Waiting for the backlash. Thanks All!!!
