Boundary blend fail

  • April 18, 2016
  • 6 replies
  • 3259 views

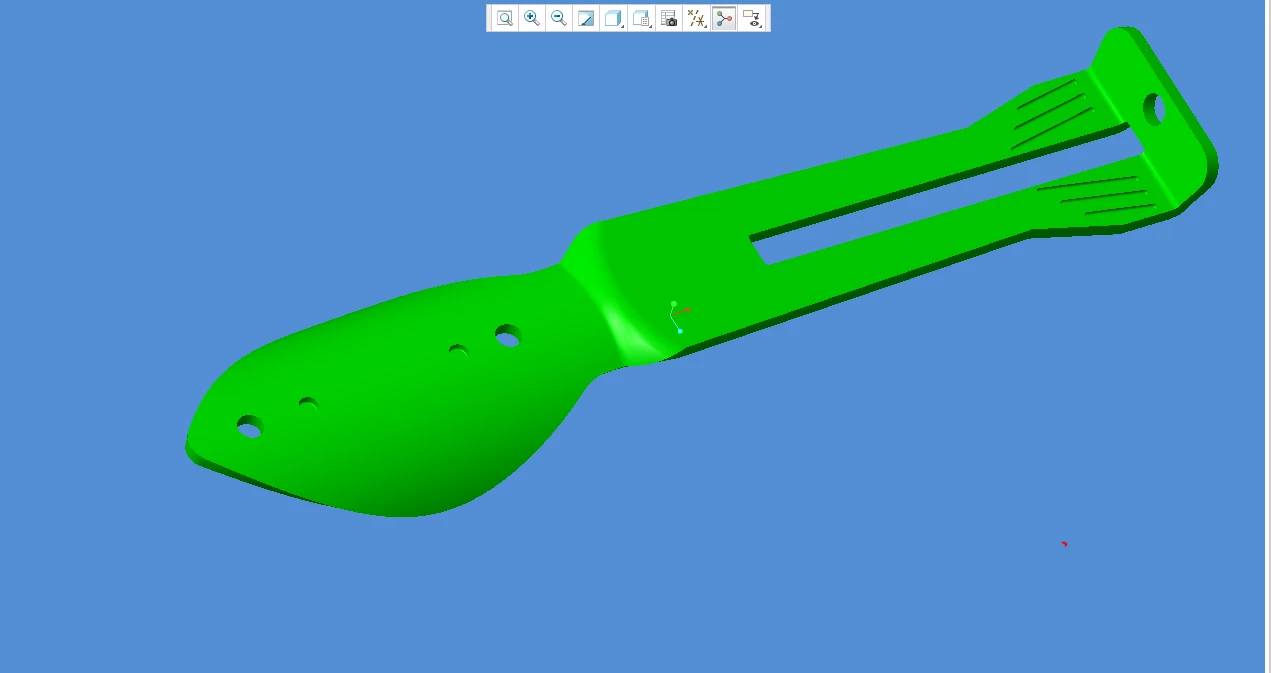

Can someone direct me as to what I am doing wrong with this boundary blend?  I've tried every direction I can come up with.  I have also attached a snip of what the part should look like. Thanks in advance for your help.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by danderson

Hi Don,

I think it might be related to the curves controlling the transition from the upper part to the lower part.

I think as it makes the transition it's going to 0 material thickness. Inside radius is to small.

You might try sketching the transition with lines and arcs to control the inside radius so it doesn't go negative or change the transition so it occurs over a longer distance.

Hope this helps,

Don Anderosn

6 replies

D
danderson1-VisitorAnswer
1-Visitor
April 18, 2016

Hi Don,

I think it might be related to the curves controlling the transition from the upper part to the lower part.

I think as it makes the transition it's going to 0 material thickness. Inside radius is to small.

You might try sketching the transition with lines and arcs to control the inside radius so it doesn't go negative or change the transition so it occurs over a longer distance.

Hope this helps,

Don Anderosn

    D
    drawlins1-VisitorAuthor
    1-Visitor
    April 19, 2016

    Great answer.  I lengthened the distance between the 2 pieces of geometry and it worked.

    Thank you!

    T
    TomD.inPDX17-Peridot
    17-Peridot
    April 19, 2016

    Modeling a Ring Lug in 5 Minutes

    ...if you want options.

      D
      drawlins1-VisitorAuthor
      1-Visitor
      April 19, 2016

      This would probably have been the correct way to model this part if I had started out in this direction.  Thank you!

      T
      TobiasLarsson12-Amethyst
      12-Amethyst
      April 19, 2016

      The sheetmetal (i.e the boundaryblend that will be thinckend)  will be "too bent" so it will intersect itself.

      If possible, change the distance so the surf will be "longer". i changed the position of DTM1 and then the boundarblend works.

      //Tobias

        D
        drawlins1-VisitorAuthor
        1-Visitor
        April 19, 2016

        This worked great.  Thank you!
