Cannot Remove Hidden Lines in Assembly Drawing (Creo 2.0)

  • February 4, 2015
  • 2 replies
  • 6593 views

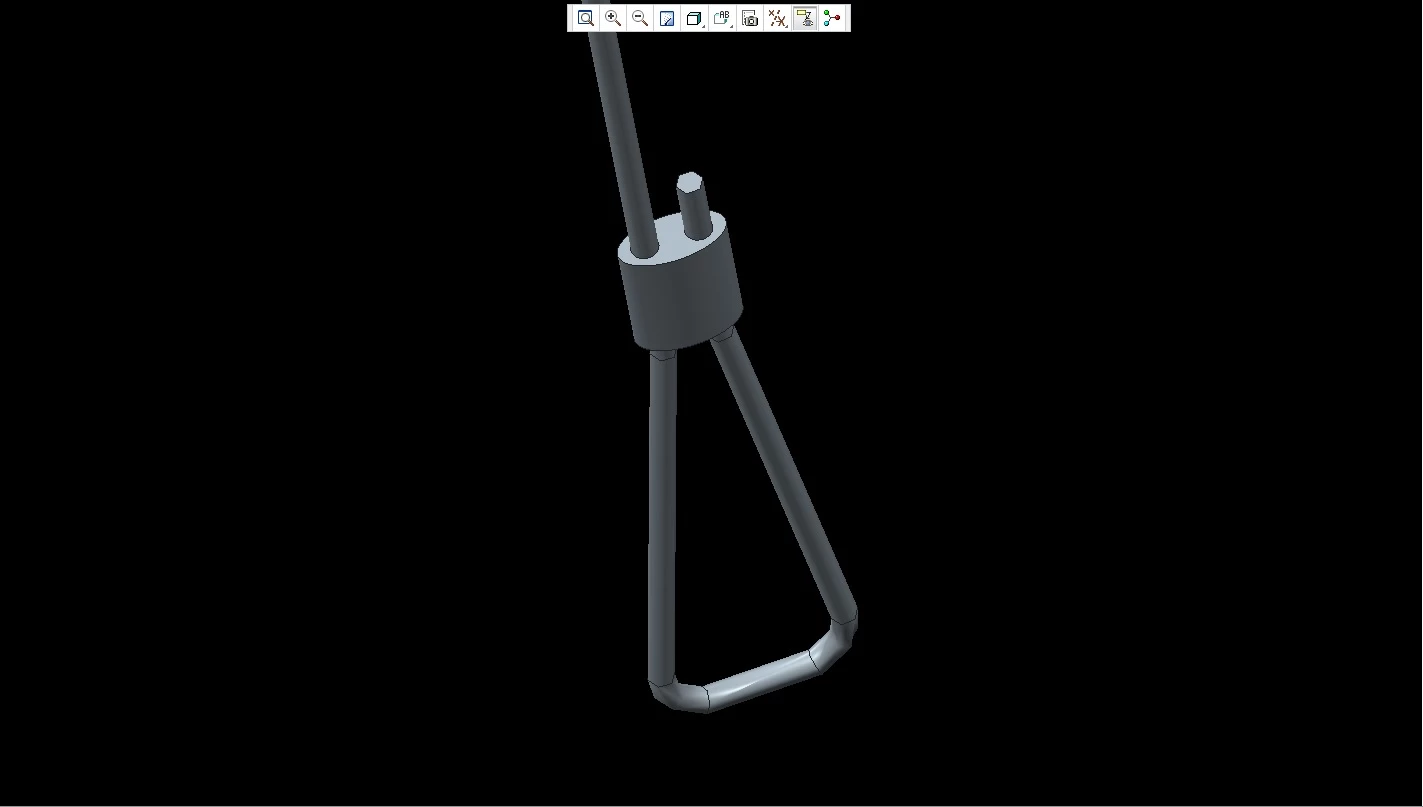

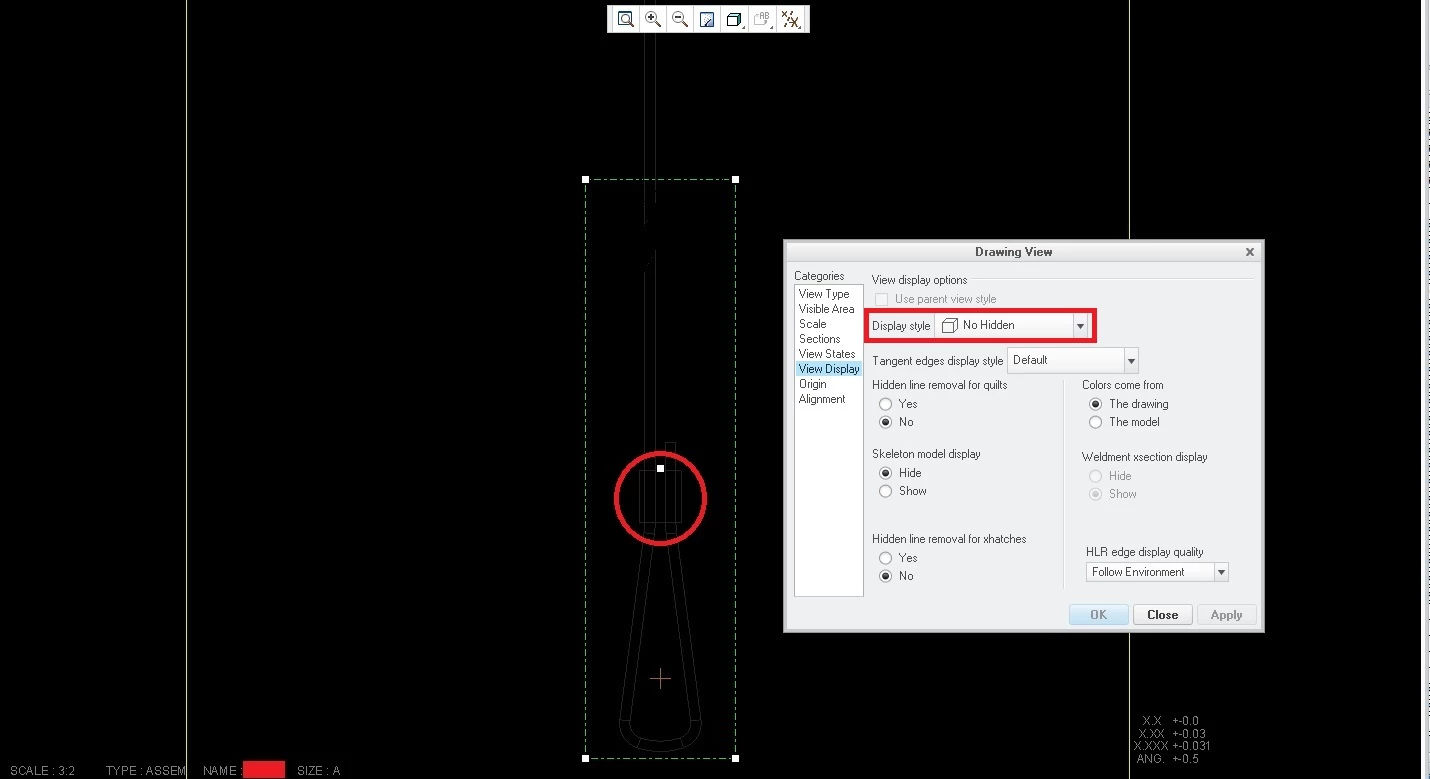

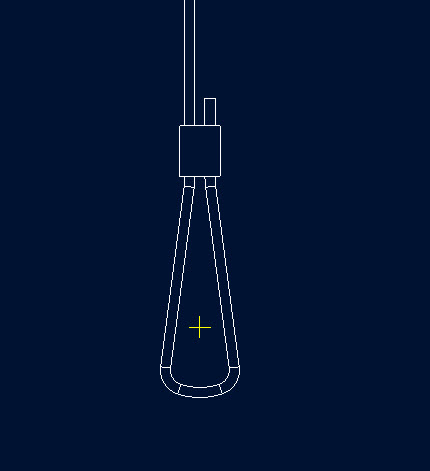

I'm currently working on creating a drawing for an assembly. As you can see in drawing mode, I've selected "No Hidden" as the display style. However, the wire still shows through the sheath in drawing mode (refer to the red circle in the picture below.) I've also attached a picture of the assembly in 3D mode to give an idea of the geometry. As you can see, the clip completely surrounds the wire. How do I prevent the drawing from showing what is inside of the sheath? I am using Creo 2.0.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Mahesh_Sharma

Wiliam,

Tried a quick test on file and issue seems to be due to accuracy of part wire__.prt. I set the relative accuracy of part wire__.prt to 0.001 and this corrected the view display.


2 replies

M
MartinHanak24-Ruby III
24-Ruby III
February 4, 2015

William,

what kind of geometry is created in your parts, solid or surface ? In case of surface geometry, you can set Hidden line removal for quils to Yes in Drawing View dialog box.

Martin Hanak

D
dschenken1-Visitor
1-Visitor
February 4, 2015

There is probably interference between the two parts, which causes the software to be unable to determine which part blocks the other. Or, as Martin suggested, one or both parts are surfaces, aka quilts, which need to have the drawing mode to Hidden link removal for quilts set to be evaluated for hiding capability.

W
wjamieson1-VisitorAuthor
1-Visitor
February 4, 2015

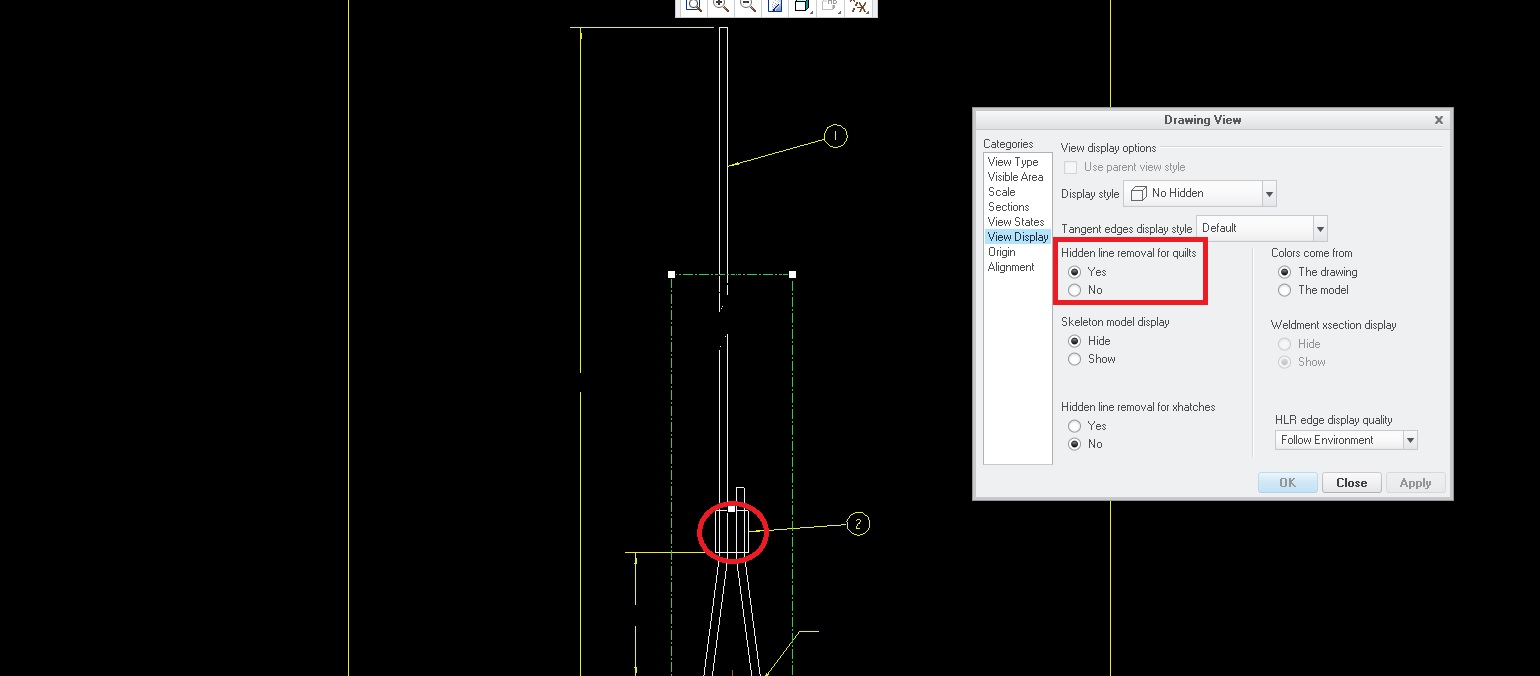

Thanks for the suggestions. I have changed "Hidden line removal for quilts" to "Yes" in the drawing view dialog box, as shown in attached picture. This did not correct the issue. Are there any other suggestions anyone might have? Thanks!


M
MartinHanak24-Ruby III
24-Ruby III
February 5, 2015

William,

please upload the model and drawing, if you can.

Martin Hanak
