create twist along a sweep / extrude

  • July 23, 2018
  • 6 replies
  • 5337 views

Hi,

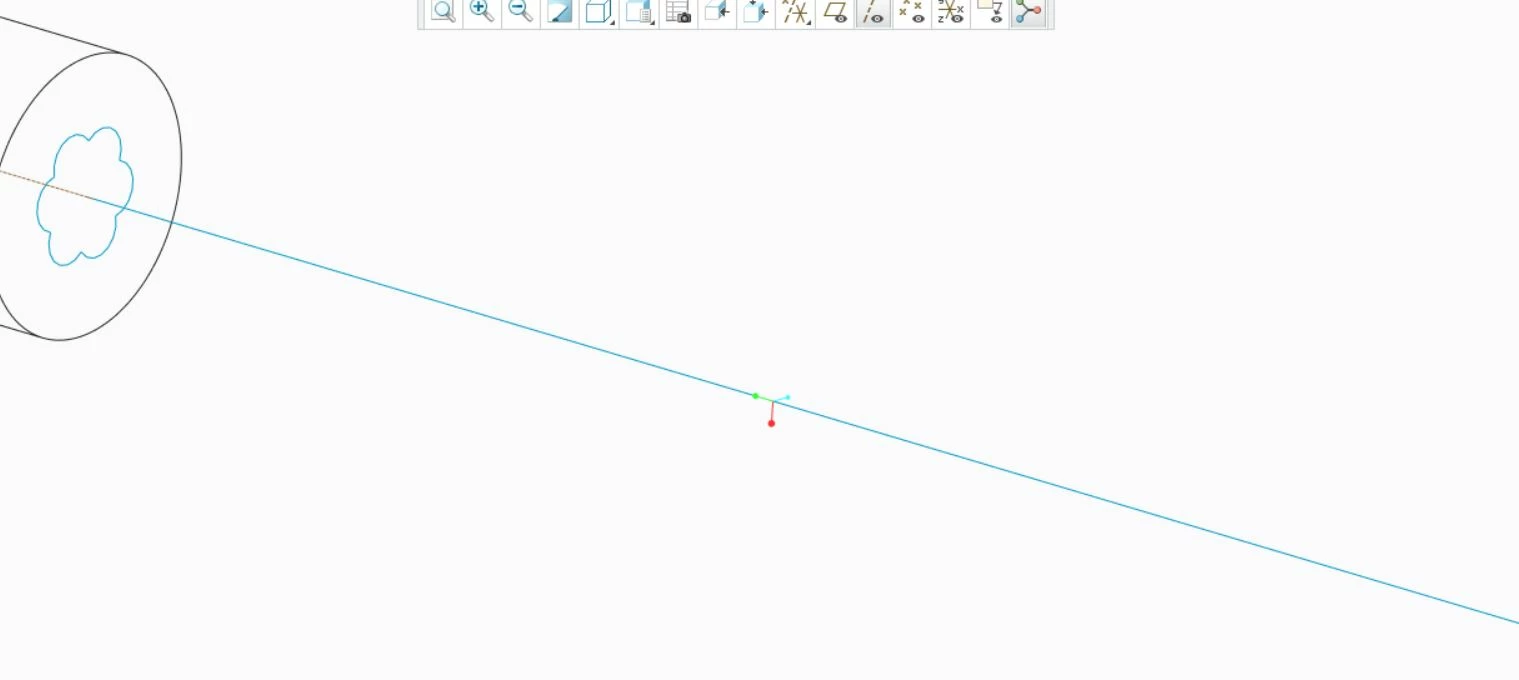

i have a profile like i have in the image.

i need to twist the profile fro 2 rotations , (360*2) along the path for 100 mm ..

can any one suggest an easy way to do this...



Blend is one option, but when i tried i could not rotate more than 360deg (one rotation) ..

kindly help if possible

Thanks in advance..



Best answer by John.Pryal

Hi, hopefully the attached model will help you achieve your goal.

Good luck!

John



6 replies

J
John.Pryal1-Visitor
1-Visitor
July 24, 2018

There are a few ways this could be achieved. By relation using trapar or using 'Warp' feature with twist. I have attached a basic model showing technique. Good luck!



John

    V
    vdevan1-VisitorAuthor
    1-Visitor
    July 27, 2018

    Hi,

    Thank you for the model, it was helpful.

    however i thick sweep using relation would give perfect results than warp.

    i tried to form a relation with the angle and trajpar, but i couldn't get the desired result.

    if possible, can you help me with a relation.,..,?



    Thanks for your help .. .



    M
    mcestnik14-Alexandrite
    14-Alexandrite
    July 27, 2018

    Blend could work if you add intermediate sections...added an example part.
