Creo 3 M40 Drawing View Dissappearing Lines

  • June 24, 2015
  • 1 reply
  • 2464 views

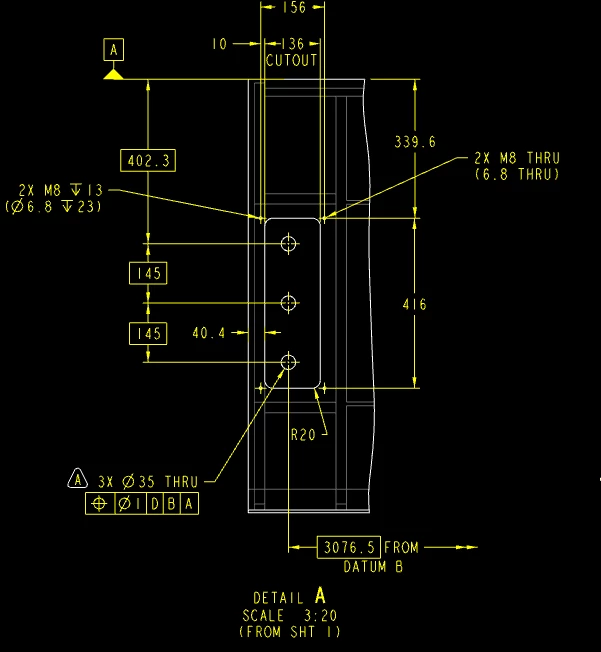

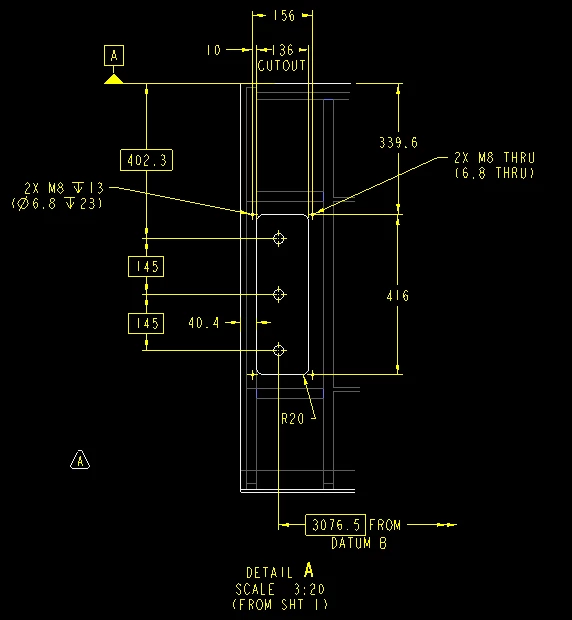

We are switching to Creo 3 and have noticed that the boundary lines from detail views are disappearing.  Please see the pictures below.  They show in Creo 2 but when opened in Creo 3 the boundary does not show up.  Both versions are shown when printed.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

M
MartinHanak24-Ruby III
24-Ruby III
June 24, 2015

Ben,

maybe it is graphical problem. Try to add graphics win32_gdi option at the end of config.pro file and open the drawing in Creo 3.0, again.

Martin Hanak

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
June 24, 2015

Ben,

Can you share any sample file?

B
bshepherd10-MarbleAuthor
10-Marble
June 25, 2015

I have tried this drawing on other machines and I can not duplicate the issue.  I will post again if I can figure out how to duplicate the issue.  For now consider this closed.  Thank you for your responses.
