Creo 3 - Strange behaviour - 2

  • July 11, 2019
  • 2 replies
  • 1858 views

Hi,



would you please explain to me why Creo behaves so strangely?

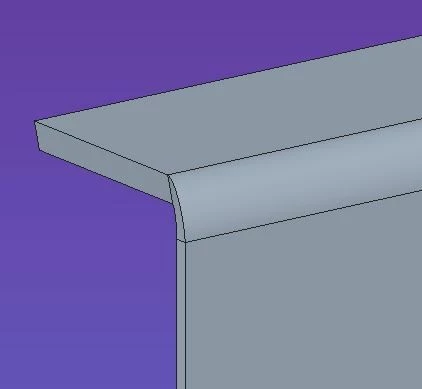

I have created a simple flange:






Edited:

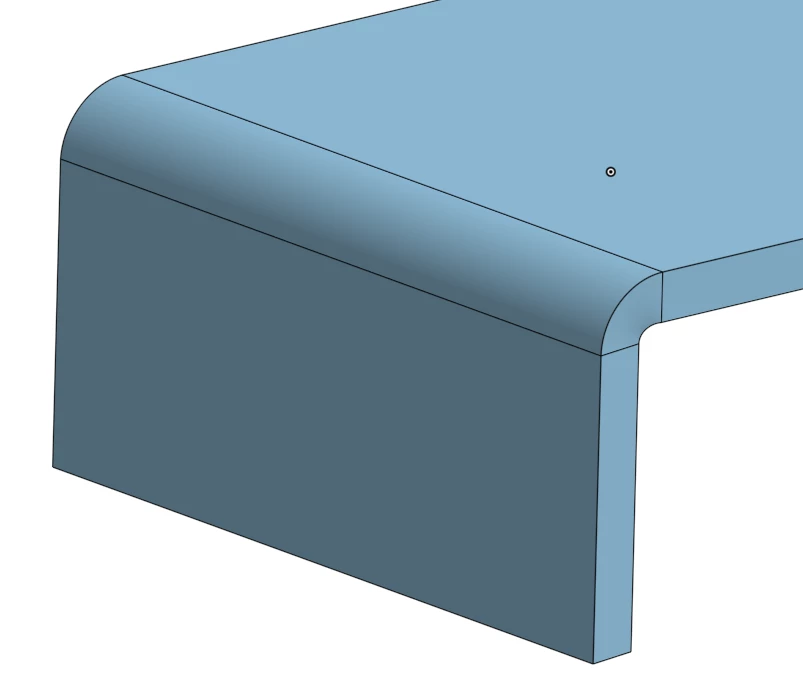

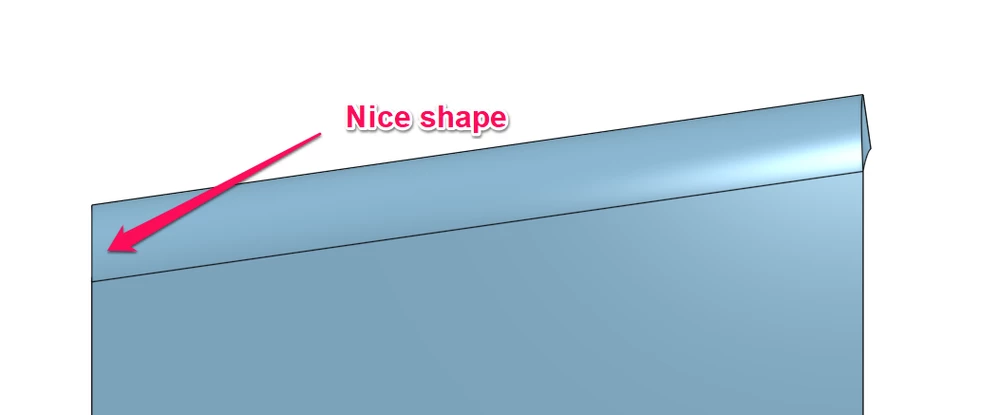

and re-created it in Onshape - just for comparison :






Edited:






regards.

Arek

Best answer by kdirth

The default bend relief is rip, creating a sliver because the flange is on an angled edge.  Change the relief to eliminate the sliver.  No relief would work well on the shown part.






2 replies

A
ArekTRI1-VisitorAuthor
1-Visitor
July 11, 2019

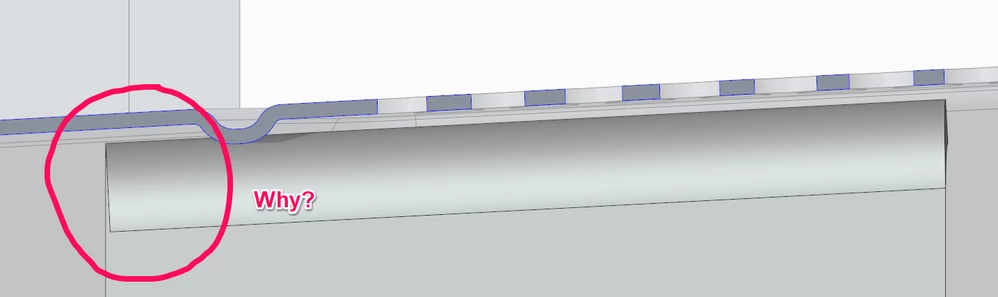

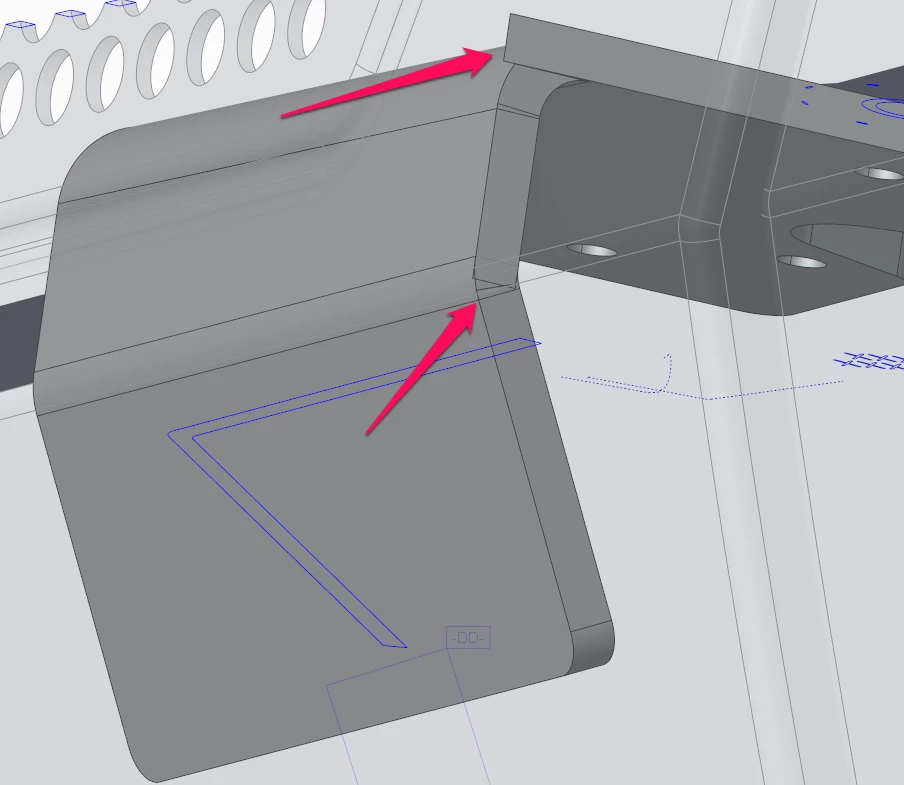

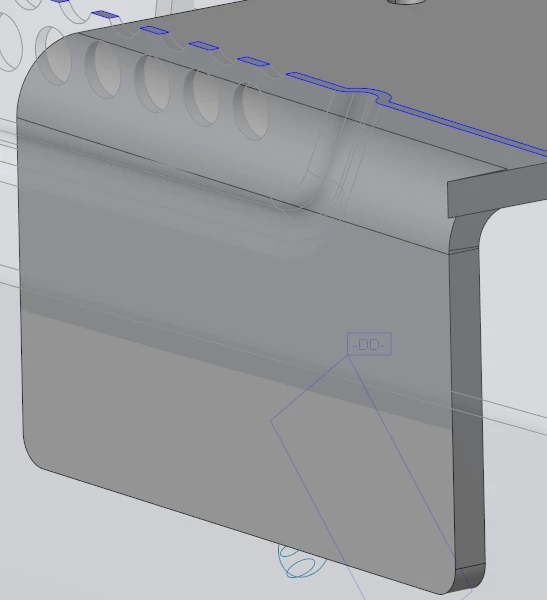

Another screenshot showing the issue:




regards,

Arek

kdirth
kdirth21-Topaz IAnswer
21-Topaz I
July 11, 2019

The default bend relief is rip, creating a sliver because the flange is on an angled edge.  Change the relief to eliminate the sliver.  No relief would work well on the shown part.






There is always more to learn.
