Creo 4 Tangent Leader not available for Feature Control Frame

  • July 30, 2018
  • 2 replies
  • 5781 views

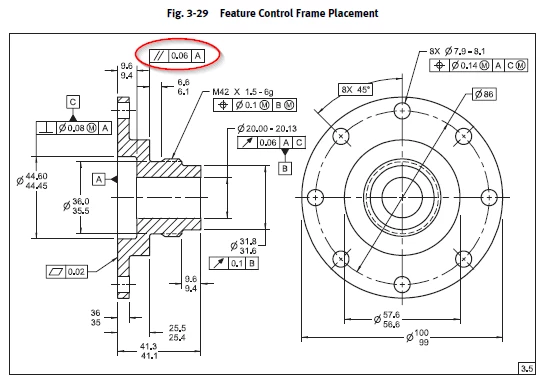

Struggling with GD&T changes in Creo 4 since using Pro/Engineer for the last 22 years. In a drawing, I'm trying to attach a GD&T Feature Control Frame with a tangent leader and it appears a "tangent leader" attachment is not available. I've tried this in the part and drawing. The best I can do is a leader pointing to the edge/plane. REF: ASME Y14.5-2009, 3.5(c) - "A feature control frame is related to a considered feature by ... attaching a side, corner, or an end of the frame to an extension line from the feature, provided it is a plane surface". See attached for an example.

Best answer by Mahesh_Sharma

@akelly

Use SHIFT,

Select GTOL, Shift + select text and move

2 replies

T
23-Emerald IV
TomU23-Emerald IV
23-Emerald IV
July 30, 2018

You have to use a leader.  While the end result looks correct, the workflow is not intuitive.

Here is a video tech support sent me showing how to do this:

(view in My Videos)

A
akelly12-AmethystAuthor
12-Amethyst
August 6, 2018

Thanks a bunch.  I never would have figured that out without the video.  If it was covered in the CP2 to CP4 Precision LMS course, they touched on it so lightly that it didn't register.

A
akelly12-AmethystAuthor
12-Amethyst
March 27, 2019

Still having trouble. See attached.  I'm using draft GD&T.  I want the feature control frame to the RIGHT of the tangent leader, but it keeps snapping to the LEFT.  Not a good placement for the view and dimensions

Mahesh_Sharma
Mahesh_Sharma22-Sapphire IAnswer
22-Sapphire I
March 27, 2019

@akelly

Use SHIFT,

Select GTOL, Shift + select text and move

    A
    akelly12-AmethystAuthor
    12-Amethyst
    March 27, 2019

    Thanks. Good Lawd CP4 is complicated.  Requires un-learning 20 years of good habits.
