Creo 4 Tolerancing

  • October 24, 2017
  • 2 replies
  • 6976 views

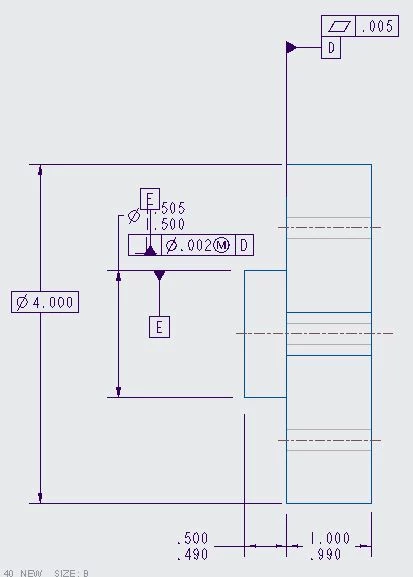

Either my colleague and I have forgotten everything we've ever known about GD&T in Creo, or something has changed from Creo 3 to Creo 4 that we haven't been able to find an answer to. The first graphic below shows an example of what we want to do. This is a Creo 3 drawing. The datum planes, axes, etc. and tags were created in the model as per company standard. In the drawing, using "show model annotations" they were applied to the views, then the geometric tolerances were added.

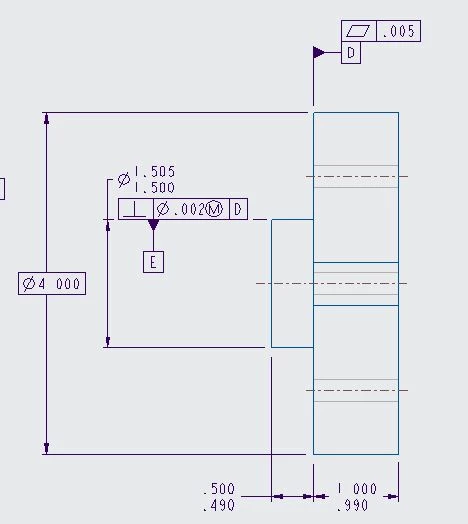

It seems in Creo 4, geometric tolerances cannot be added to datum tags brought in from the model. So, instead, we applied them to the appropriate faces in the drawing. But, when we try to apply the tolerance to datum tag E as shown in the second graphic, it gives us a second datum tag that we cannot get rid of.



Is there something we haven't turned on? Or something we need to turn off? Any help is appreciated because we're quite frustrated. Thanks.

Best answer by Mahesh_Sharma

It was a known bug, fixed in Creo 4.0 M030



Check article CS265624

2 replies

Mahesh_Sharma
Mahesh_Sharma22-Sapphire IAnswer
22-Sapphire I
October 24, 2017

It was a known bug, fixed in Creo 4.0 M030



Check article CS265624

    P
    ptc-48533421-VisitorAuthor
    1-Visitor
    October 24, 2017

    Thanks so much. We're updating from M010 in December, or so I'm told.

    Mahesh_Sharma
    Mahesh_Sharma22-Sapphire I
    22-Sapphire I
    October 25, 2017

    You may mark the post as solved.

    M
    motormayhem1-Visitor
    1-Visitor
    June 15, 2018

    I am seeing this exact issue in M050 and did not see it in M040. Has this bug resurfaced?

    P
    ptc-48533421-VisitorAuthor
    1-Visitor
    June 18, 2018

    Sorry, I can't help with this. We're still using M030 since we only run updates once a year, over the Christmas holidays and later in the summer. I hope someone else can supply an answer so I/we will know if it is a recurring problem and if we should hold off on the next update since tolerancing is very important to what we do.

    B
    BenLoosli23-Emerald III
    23-Emerald III
    June 18, 2018

    Even if you only roll out releases twice a year to your users, don't the system admins load prospective versions to check if there are any new features/anti-features in a proposed rollout build?

    I always run different versions on my machine before installing it on the server for all of the users to use.
