Good day everyone,

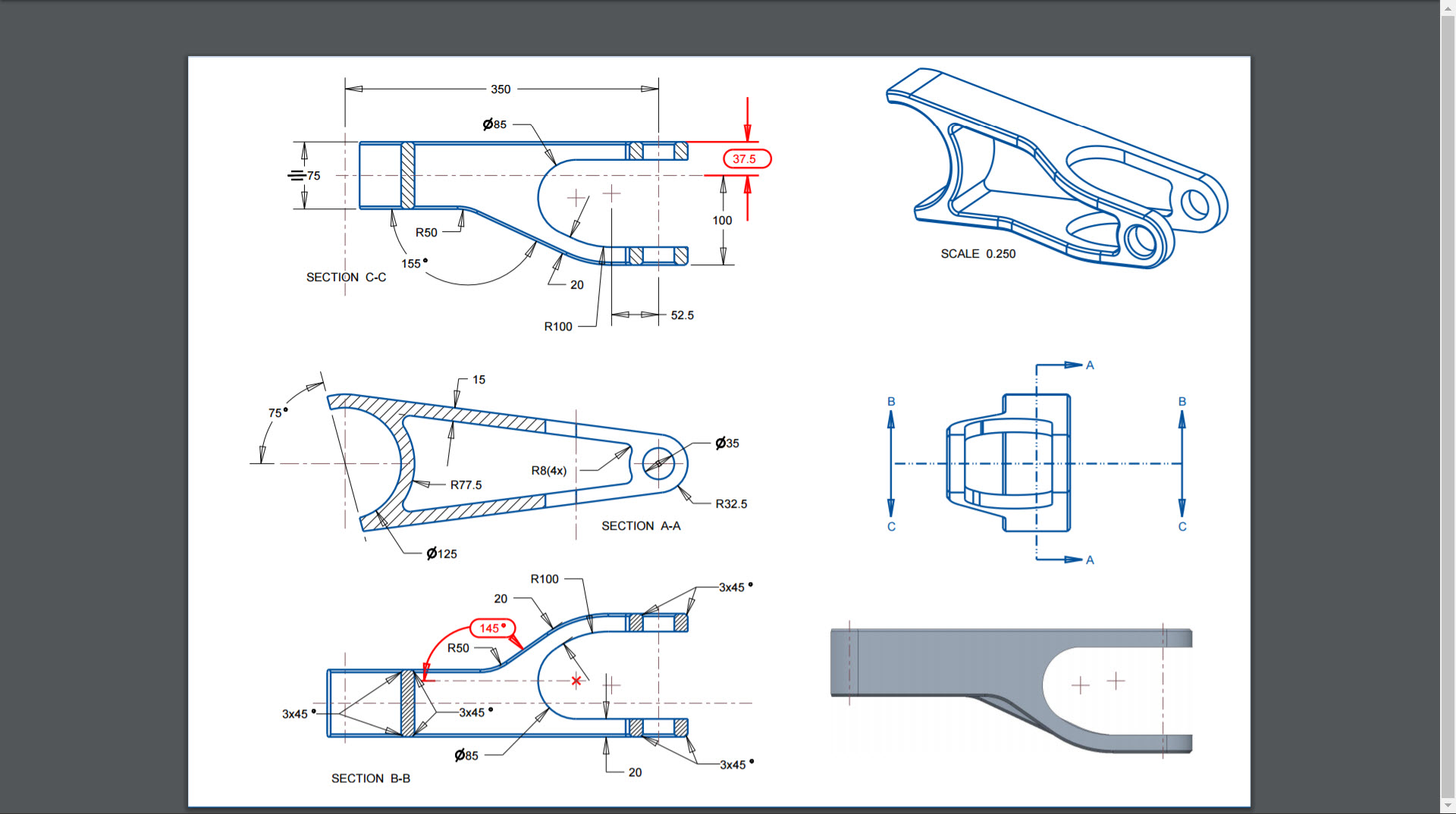

Attached is the drawing from the LiveWorx 17 Creo Battle Royale.



During LiveWorx, contestants were given a combined score based upon time to complete (up to 20 min) and a score for the quality of the model.

Certainly, it will be difficult to judge time, but for fun, please post your drawings - we are looking for accuracy.



Do you have the chops?



Post your solutions here Creo Challenge for fun 2017 - PTC Community



Best,

Toby

29 replies

17-Peridot
June 9, 2017

From my point of view, we should not look at the number of features. In general features need to be as simple as possible for faster regeneration and for future modifications.

1-Visitor
June 9, 2017

I've worked on models where every possible contribution in topology was a separate feature. They'd make that part with 30 features or more. Ever look at 50 separate rounds randomly sprinkled in a model tree? All need to be the same radius, but now that radius needs to change.

On a side note, years ago I asked for software execution profiling - time and memory statistics on a per-feature basis so that complexity vs simplicity could be compared and was told PTC always worked to produce the optimum result. Which is great, but users don't do optimum things. Does a sketch with 50 topology contributors take longer than 20 sketches with 60 contributors, the 10 extra ones just there to cap the incomplete boundaries left from subdividing the original? Is it better to see a coherent sketch or a model built of 90% scaffolding datum planes and sketches and curves?

Too often I've been burned by vast chains of useless dependencies carried through a big pile of simple sketches. Delete one hole and halfway across a part a chamfer disappears, taking a bunch of rounds with it and another hole.

1-Visitor
June 9, 2017

I'm with dschenken on this one, but I see the merit in your point of view Manjunath.  My question was simply out of curiosity since I can't see a way this Challenge part can be made with any less than 3 features.  I'm sure someone could build a feature tree 100 features long to get this simple part, and the case can easily be made to use more than 3 for design flexibility reasons.

I personally try to group features as best I can using common sense and as much forethought as I can muster.  Dschenken, I actually HAVE had to work with another engineer's model that had 10+ individual round features of the same size, and would always remain of equal size.  I'm a firm believer in naming features in a relative way, "Base extrude, Mounting Bolt Pattern, Support gusset, etc" to help simplify, organize and make sense of the model tree.  It's easy to start from scratch on a model and go thru the whole design then look back and try to remember which of those extrude features was the extrude cut you're now looking to tweak.  When it comes to obscure dependencies, I've been so frustrated at times that I nearly throw the computer out a window.  Adjust the round radius by 0.010" and the whole part grows by 60"...   Dependencies are incredible tools when used in the right context and with the correct setup, they can be absolutely counterproductive when abused.

Good discussion folks!

17-Peridot
June 9, 2017

I absolutely agree with you Dschenken.

By making features simple, I meant not creating many number of rounds of same value.

Instead, not complicating the feature sketches until the sketcher starts to flicker, for which that complex geometry can me made by splitting into simpler multiple features, also keeping in mind the references that these small features will have further down the model tree.

So in general, a model having more number of features is not a bad model, or vise versa. it all depends on how easy is it to modify for others using that model; as rightly said by Mitch, should not be a frustration for others.

23-Emerald IV
June 9, 2017

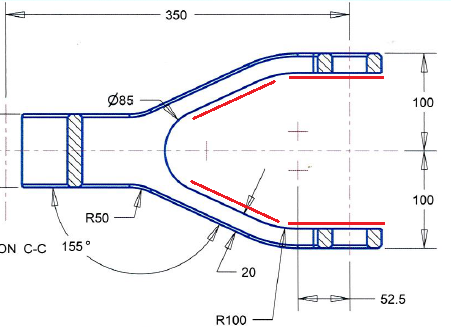

Continuing the feature count discussion, when I built this at the show I was torn on whether everything in this view should be sketched together or if the inside area (along the red lines) should be done as a separate feature.

Based on the way it's dimensioned, if you really want these dimensions to be the "real" controlling (think shown) dimensions, you are forced to sketch both the inside and the outside at the same time.  If instead of the R100 the designer had called out R120 on the outside of the part, the inside area could have been created completely separate from the outside.

These type of modeling decisions can definitely impact how easy the model can be changed in the future.  I know that for the final championship round they were going to give each of the finalist their original models back and then require them to make certain changes.  I didn't get a chance to see it but maybe Toby Metcalf‌ can get a copy of that final print too.  It would be interesting to see if any of the initial modeling decisions end up causing trouble later.

Tmetcalf5-Regular MemberAuthor
5-Regular Member
June 9, 2017

I will see what I can find Tom.

HamsterNL
18-Opal
June 9, 2017

For me, Design Intent is most important. Capturing the right Design Intent will result in fewer and more stable features.

I create the "generic models" which our engineers use for their projects. Using the right references is critical for our models to behave stable. A change in our design (using Excel to drive 1250+ input parameters) can result in 20k features to be regenerated. I don't want our engineers to face even a single resolve dialog.

For some parts, I can delete/suppress the very first feature (extrude) without all the other features failing. Every other feature is sketched/constrained to datumplanes.

Tmetcalf5-Regular MemberAuthor
5-Regular Member
June 9, 2017


23-Emerald IV
June 9, 2017

Interesting.  Thanks for finding this.  Knowing this, does it change the approach anyone would have taken on the initial model?

1-Visitor
June 9, 2017

How's this for a concept - the output has to be a drawing of the part, all dimensioned like the original. Then step 2 is to add key-lock inserts. See who planned ahead and made an assembly model when given a part drawing.
