Creo - Custom Symbol

  • September 10, 2018
  • 1 reply
  • 2285 views

Hi,

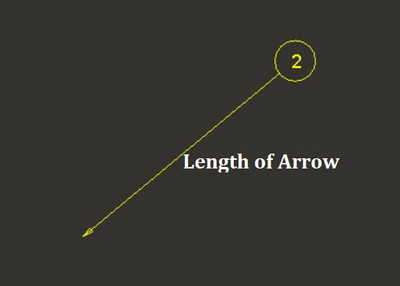

I want to create the symbol like BOM Balloon. But I need the arrow line length is variable i.e I want to change the length of the arrow line in the symbol during placement. Is it possible?

Or any other Ideas are available instead of Using BOM Balloon and Balloon Note in the CreoLength of Arrow.png

Thanks in advance

This topic has been closed for replies.
Best answer by PARTHIBAN_K

Hi @StephenW,

    Thank you for the response, yet I have found the way from this

https://community.ptc.com/t5/Detailing-MBD-MBE/Custom-Symbol-Within-a-Note/m-p/426856#M5523



I created the Balloon symbol without leader and inserted it into the Note with the leader. Now its working fine for me

1 reply

StephenW
StephenW23-Emerald III
23-Emerald III
September 10, 2018

Maybe something like the attached symbol?



P
PARTHIBAN_K16-PearlAuthorAnswer
16-Pearl
September 11, 2018

Hi @StephenW,

    Thank you for the response, yet I have found the way from this

https://community.ptc.com/t5/Detailing-MBD-MBE/Custom-Symbol-Within-a-Note/m-p/426856#M5523



I created the Balloon symbol without leader and inserted it into the Note with the leader. Now its working fine for me
