Creo Framework Extension- Joint at intersection of 3 lines

  • December 28, 2015
  • 2 replies
  • 2346 views

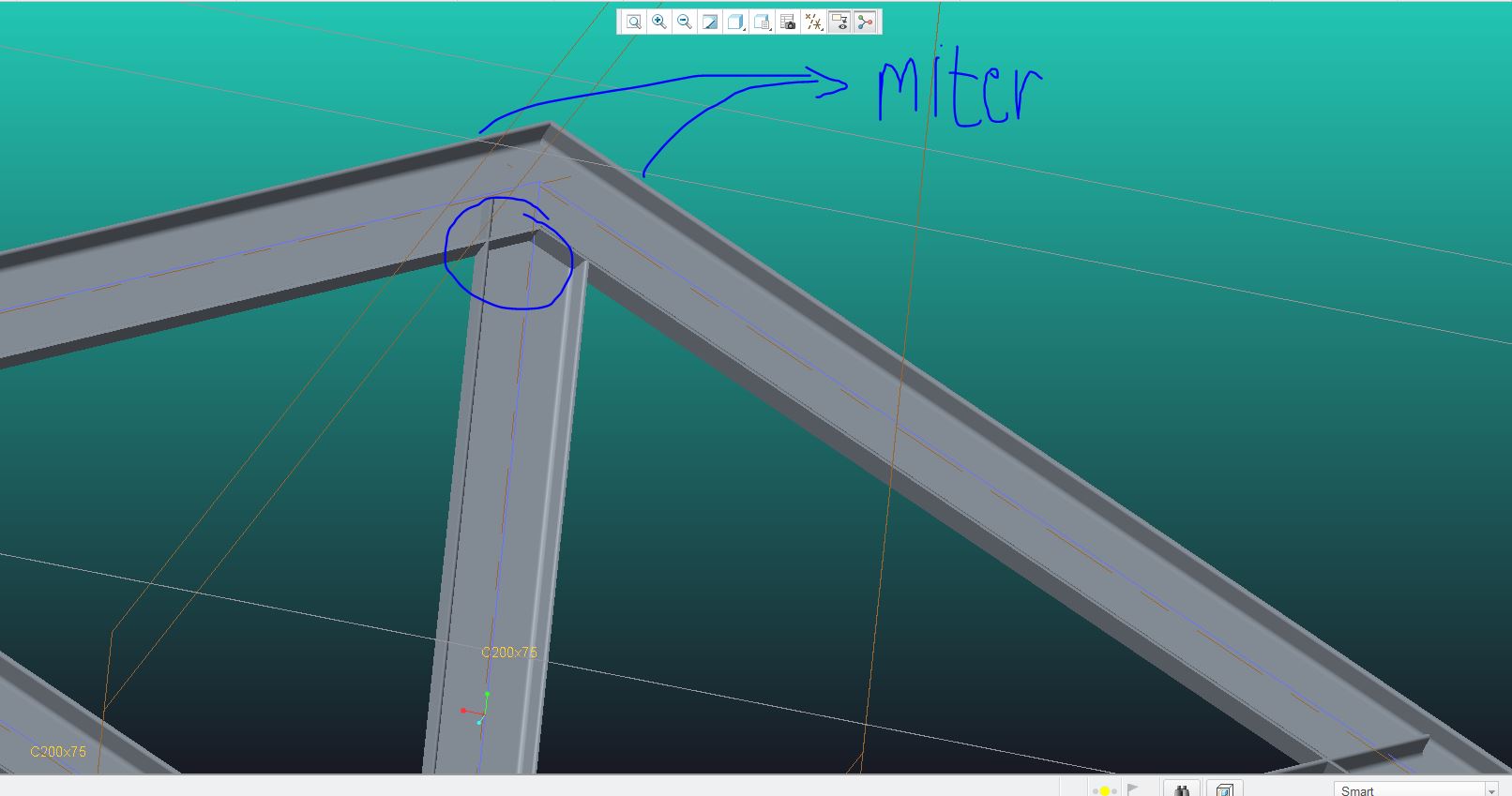

I don't know what joint i should give to the remaining vertical channel so that it matches with rest of the two. I have already given miter joint to slanted channels. Please guide me through.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
    Best answer by DavorGranic

    Hi,

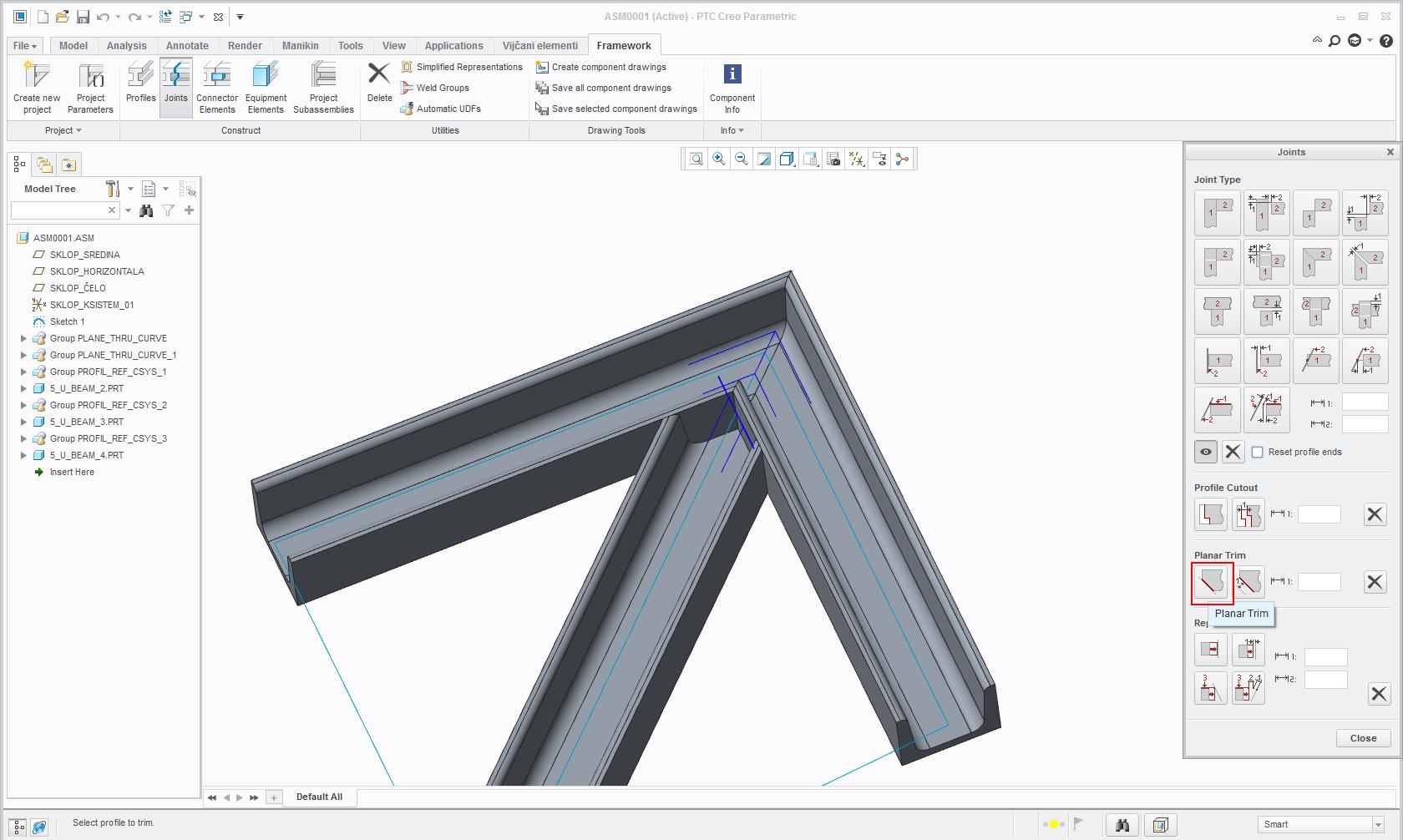

    You can use miter cut + planar cut.With miter cut you make one side of U profile lean on one of the 2 profiles and with planar cut you lean other side of profile.


    Cheers

    2 replies

    DavorGranic16-PearlAnswer
    16-Pearl
    December 29, 2015

    Hi,

    You can use miter cut + planar cut.With miter cut you make one side of U profile lean on one of the 2 profiles and with planar cut you lean other side of profile.


    Cheers

      puzzled1-VisitorAuthor
      1-Visitor
      December 29, 2015

      Okkk thanks a lot for your help. It worked out i was doing wrong way
