Solved

dimension style

Forum|Forum|11 years ago
May 7, 2015
5 replies
1943 views

hello people

i want to make dimenion style as default

how i do this?

i search in configuration editor but i do not discover anything like

tks

other thing is how i control dimension for arrow , i want to make arrow little and i do not how i do

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2D Drawing

Best answer by mbonka

*.DTL config option + my settings, that can helps you:

1) Arrows:

draw_arrow_length 3.500000

draw_arrow_width 1.500000

arrow_style FILLED

2) Text

text_height 2.2

text_thickness 0.000000

text_width_factor 0.6

dim_text_gap 1.000000

3) Font

default_font calibri.ttf

1-Visitor

You want to set default_font to ttf in your .dtl file and set the font to what you like.

Or you can change it manually within your drawing.

Answer

2-Explorer

*.DTL config option + my settings, that can helps you:

1) Arrows:

draw_arrow_length 3.500000

draw_arrow_width 1.500000

arrow_style FILLED

2) Text

text_height 2.2

text_thickness 0.000000

text_width_factor 0.6

dim_text_gap 1.000000

3) Font

default_font calibri.ttf

1-Visitor

Did this answer your question and fix the issue?

Author

1-Visitor

unfortunately i do not succed

i modify in iso.dtl fille what millan bonka settings but nothing not happened

in config.pro i have good path

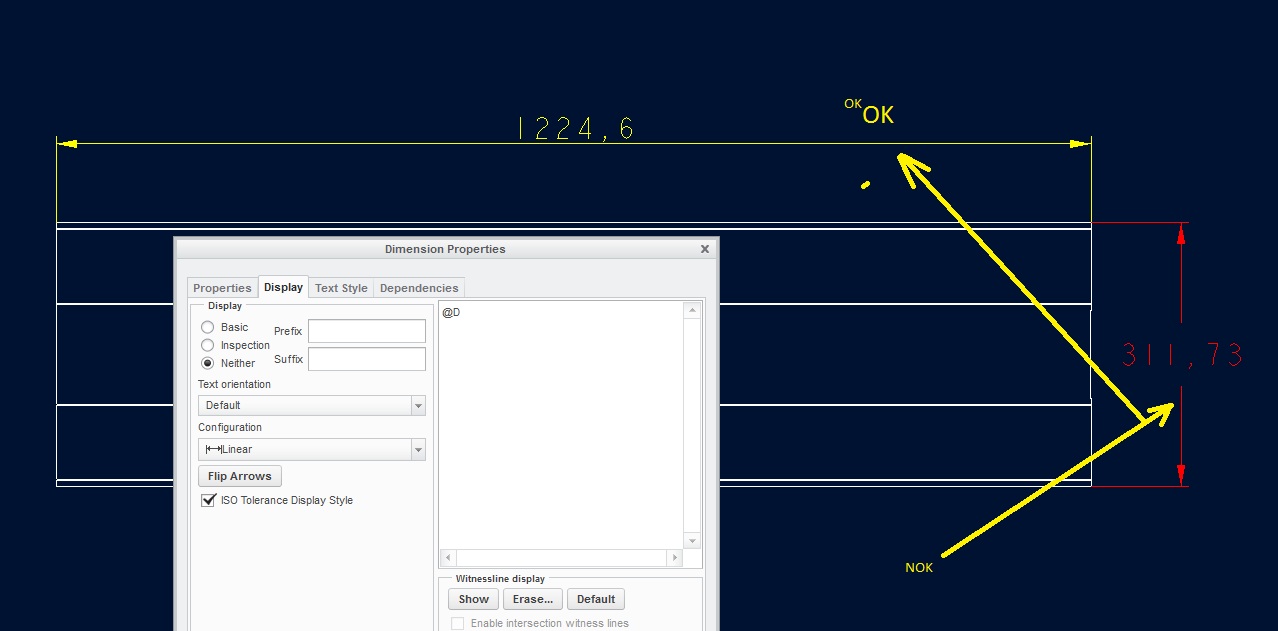

i you understand i want orientation (in picture) paralel to and above leader as default
