Display/Delete Relations PropertyManager in creo?

  • June 14, 2019
  • 7 replies
  • 5907 views

In solidworks there is a Display/Delete Relations PropertyManager that will show all constraint for a selected line or point. Is there something similar in creo?



Thanks!

Best answer by LukaszMazur
It looks like you don't have any relations defined in this particular sketch.
Also, judging by the initial post and your explanation, there might be a slight misunderstanding: relations in Creo are mathematical equations defined to drive dimension/parameter values.
Relations dialog box won't show constraints like "Tangent", "Perpendicular" "Equal Length" and so on, all those constraints are displayed next to entity they govern and I'm not familiar with any "Summary" view for such attributes.
So, if you look for any additional, mathematical expressions used to refine behavior of certain dimensions/parameters, Relations are the place to go. If you'd like to see a list of all geometrical constraints (like Tangent, Equal, Parallel), there is no such summary available, just constraints icons for any given sketch entity.

7 replies

16-Pearl
June 17, 2019

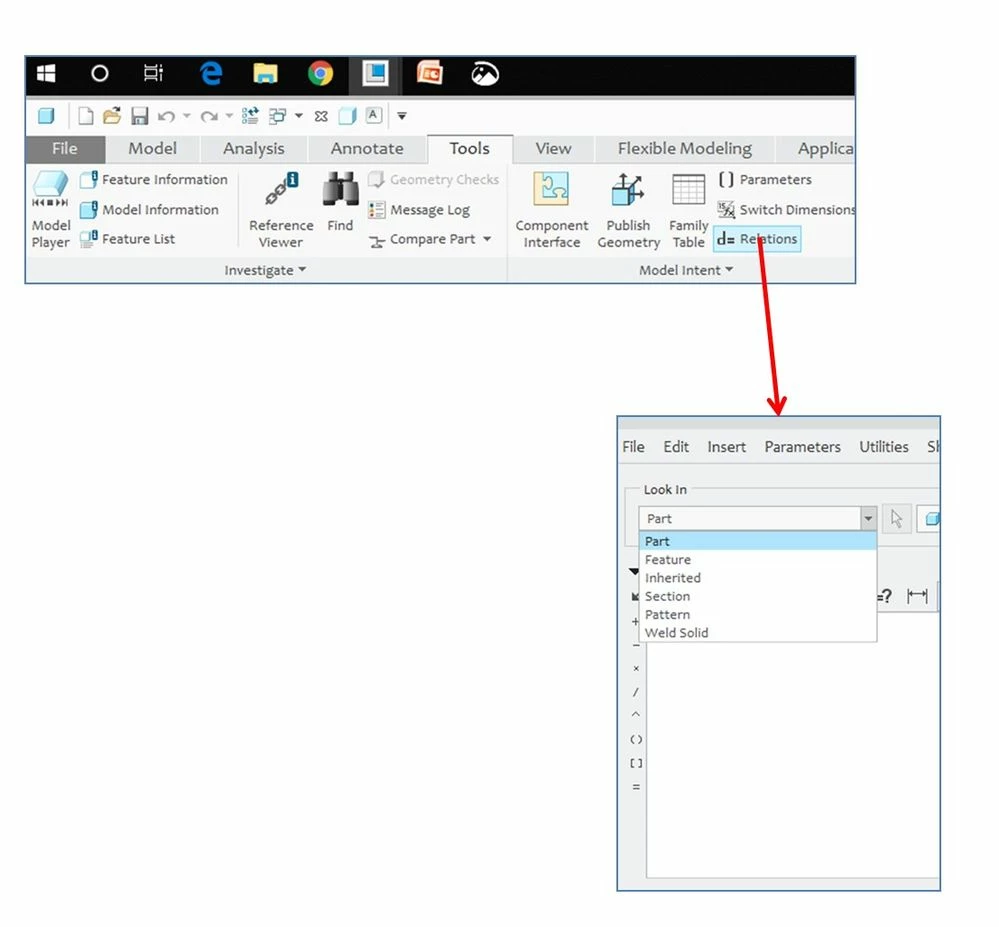

Hi, you can use "Tools/Relations"  to check for relations set in different levels, see below:


Natem06131-VisitorAuthor
1-Visitor
June 17, 2019

Thanks BHOoi,



Do you know if there is a way to see all the constraints pertaining to a certain line in a sketch using that tool?



Thanks!

16-Pearl
June 17, 2019
Yes. You can access the same menu while under sketch mode of that feature. It will show all the relations related to that sketch.
