Hello,

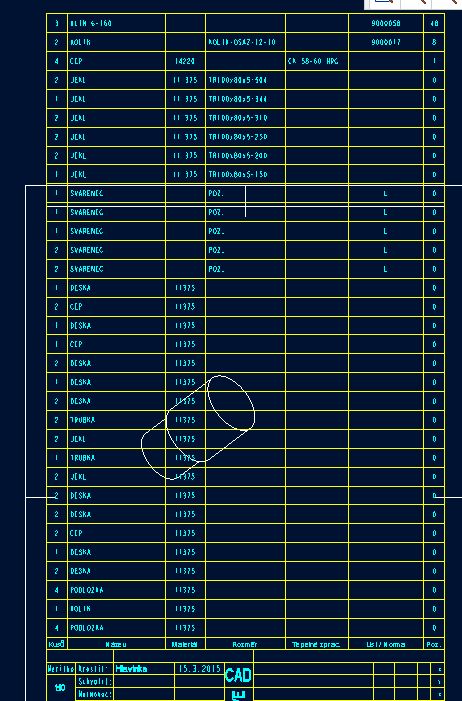

is it possible to make a connection between a main assembly bom (repeat region) and a part drawing so that the information from the assembly drawing would be shown in the part drawing which is in another sheet ?



Thanks in advance



T-


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by James62

Hi,

Yes, sort of. You can load the assembly model into your part drawing, then place and filter just the repeat region into the drawing while your assembly is set as an active model/rep.

~J

1 reply

J
James621-VisitorAnswer
1-Visitor
March 15, 2015

Hi,

Yes, sort of. You can load the assembly model into your part drawing, then place and filter just the repeat region into the drawing while your assembly is set as an active model/rep.

~J

T
thlavinka1-VisitorAuthor
1-Visitor
March 15, 2015

Thanks Jakub, and can i use some filter by rule to get rid of all those rest rows in the bom?


T
thlavinka1-VisitorAuthor
1-Visitor
March 15, 2015

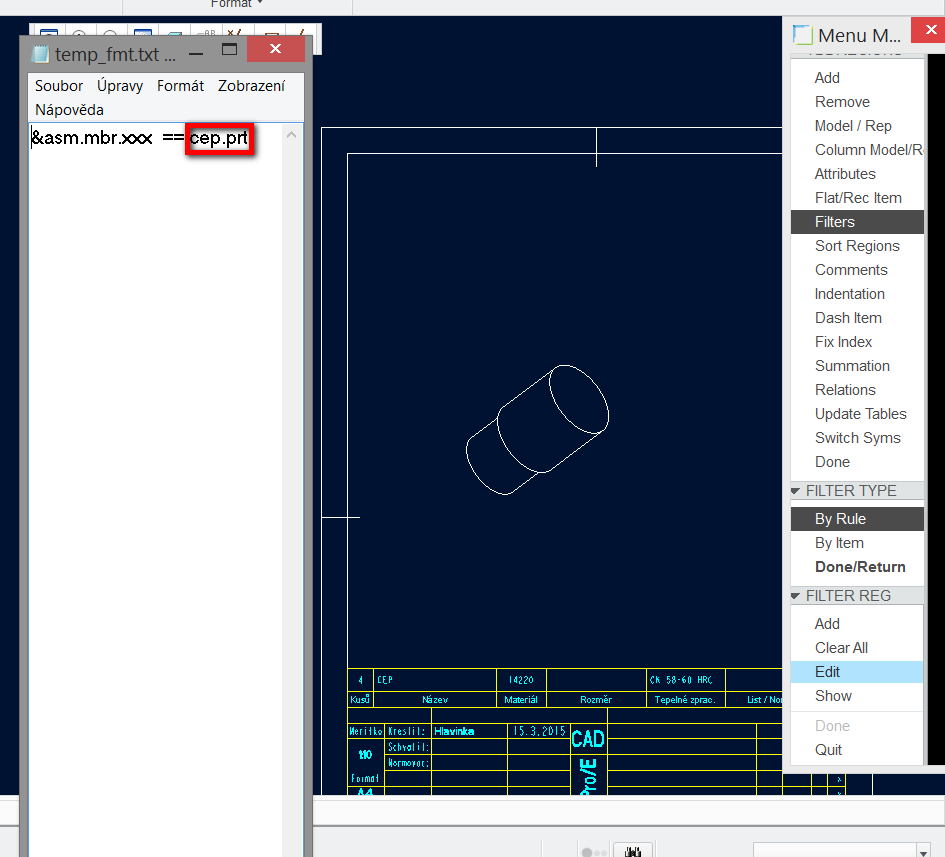

I would need to make a relation between the "cep.prt" in the repeat region filter and ptc_common_name of the current part in this sheet of assembly drawing, is it possible?
