Drawing not allowing new views, tolerances

  • November 3, 2017
  • 3 replies
  • 9588 views

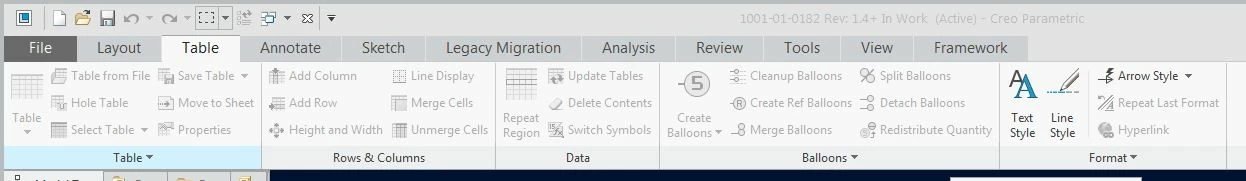

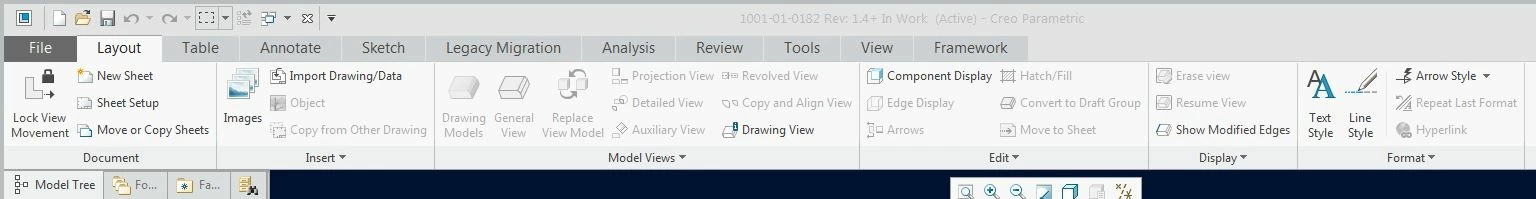

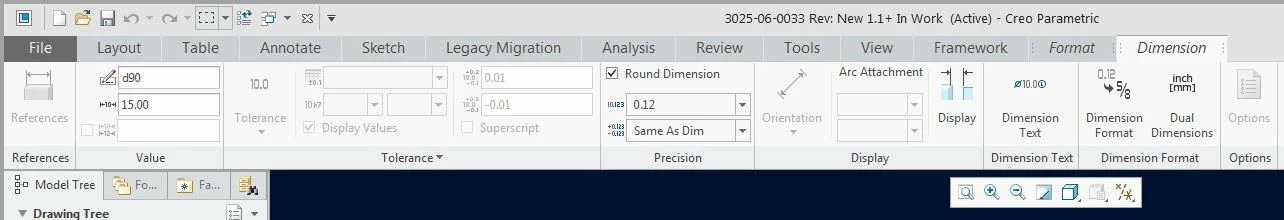

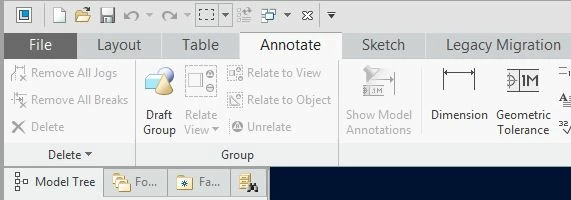

We just recently (this last week) upgraded to Creo4 and Windchill 10.2 from Wildfire 3 and Intralink 3.4... I'm trying to work on drawings, and am unable to add tolerances, tables, new views. I created a new part using legacy start parts and drawing formats and the tolerances are turned off (greyed out). The pictures I've attached are from a legacy drawing/assembly. I've never seen this issue anywhere before, with past upgrades I've done.



Any ideas of what I've turned off? Based off of what I have been able to find, tol_display is set to yes, and that should allow at least tolerance display and editing. I can do so in the model, but am unable to make them appear in the associated drawing.

Best answer by Mahesh_Sharma

For tolerance, set detail option tol_display as yes. Open any drawing File > Prepare > Drawing Properties > Change Detail options > Change the value of tol_display as Yes. Once Done, change the tolerance of Dimensions.

3 replies

R
RandyJones20-Turquoise
20-Turquoise
November 3, 2017
@shaunfather wrote:

We just recently (this last week) upgraded to Creo4 and Windchill 10.2 from Wildfire 3 and Intralink 3.4... I'm trying to work on drawings, and am unable to add tolerances, tables, new views. I created a new part using legacy start parts and drawing formats and the tolerances are turned off (greyed out). The pictures I've attached are from a legacy drawing/assembly. I've never seen this issue anywhere before, with past upgrades I've done.



Any ideas of what I've turned off? Based off of what I have been able to find, tol_display is set to yes, and that should allow at least tolerance display and editing. I can do so in the model, but am unable to make them appear in the associated drawing.

Is the drawing you are attempting to edit locked in the workspace?

M
Mahesh_Sharma22-Sapphire I
22-Sapphire I
November 3, 2017

Seems to be licensing issue. Contact your IT and reconfigure Creo 4.0 and add all available licenses (specifically Detail) in startup configuration.

S
shaunfather1-VisitorAuthor
1-Visitor
November 3, 2017

The drawing is not locked, but it appears to have been a licensing issue, at least for the majority of my problem.



I'm still unable to add tolerances to dimensions.

M
Mahesh_Sharma22-Sapphire IAnswer
22-Sapphire I
November 3, 2017

For tolerance, set detail option tol_display as yes. Open any drawing File > Prepare > Drawing Properties > Change Detail options > Change the value of tol_display as Yes. Once Done, change the tolerance of Dimensions.

    P
    ParasYadav19961-Visitor
    1-Visitor
    November 5, 2017

    Reinstall creo

    Update Dat Code

    Set default config.

    Reset all mapkeys and Shorkey

    Restart system.
