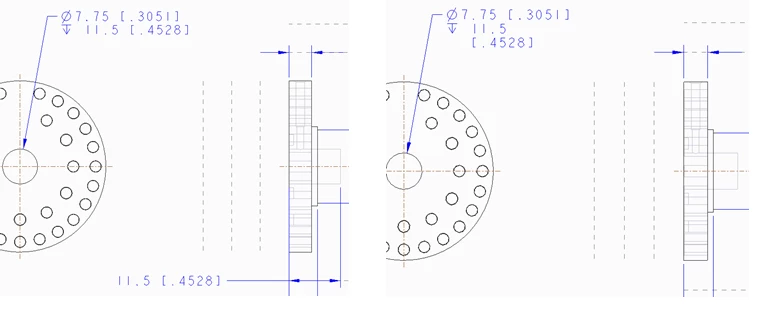

Please reference attached image.



I want to display the diameter and the depth of a blind hole on the same call out.

I have dual dimensions turned on and position set "to right"

The image on the left shows the desired formatting. However, I can only achieve that if I have the depth called out on a different view.

If I delete the depth dimension on that separate view, I get the formatting shown in the image on the right.



Is there a way to obtain the formatting seen on the left without having to add a callout in a different view.

It seems the position setting is only applying to the topmost dimension of a callout.



Edit: Running Creo3 M110

Best answer by StephenW

I was able to recreate your issue in Creo 3 M130. One work around is instead of deleting the dimension out of the other view would be to "erase" the dimension. It's sort of like hiding it, you can see it in the drawing tree in that view as hidden but maintains the formatting as you require.

2 replies

S
23-Emerald III
StephenW23-Emerald IIIAnswer
23-Emerald III
February 16, 2018

I was able to recreate your issue in Creo 3 M130. One work around is instead of deleting the dimension out of the other view would be to "erase" the dimension. It's sort of like hiding it, you can see it in the drawing tree in that view as hidden but maintains the formatting as you require.

    O
    otcunanan10-MarbleAuthor
    10-Marble
    February 16, 2018

    This workaround seems to be the best option at the moment. Thanks for your help!

    B
    23-Emerald III
    BenLoosli23-Emerald III
    23-Emerald III
    February 16, 2018

    Stephen has a valid option to 'solve' your issue.



    It would help others to know what version and build of Creo you are having this issue with.

    A lot times these types of issues have been fixed in a newer build, or worked in an older build and what you are using will help others know if it is a bug or an out-dated build issue.



      O
      otcunanan10-MarbleAuthor
      10-Marble
      February 16, 2018

      Thanks for the heads up. Added the info.
