Dual Dimensioning Can't Be Turned On

  • October 6, 2016
  • 3 replies
  • 1768 views

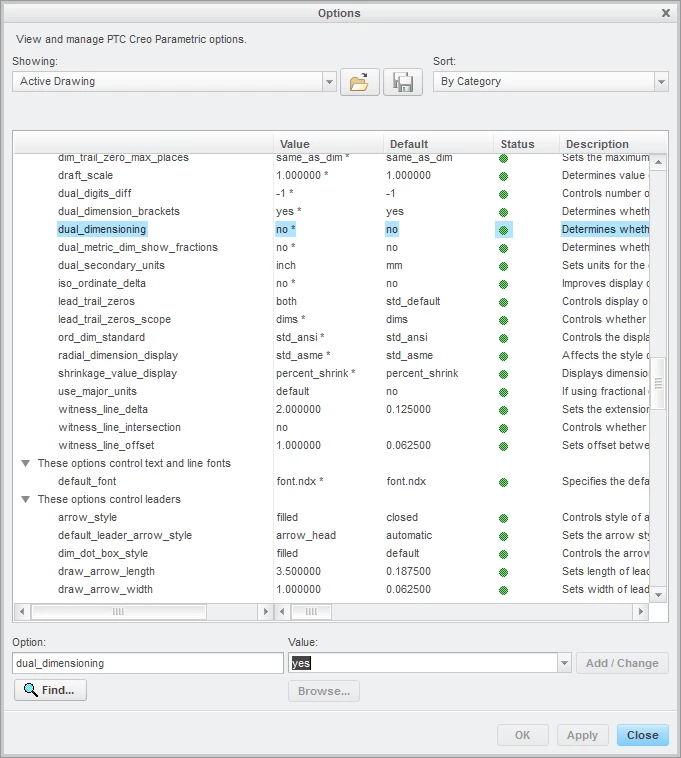

Here is an attachment of my screen shot of my options and as you can see I can't modify them. I'm looking to activate dual dimensioning for drawings. Does it have to do with my template? Thanks.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by mender

You cannot set 'dual_dimensioning' to 'yes', because the legal values for dual_dimensioning are:

no

primary[secondary]

secondary[primary]

secondary

I believe that primary[secondary] is the normal standard means for dual dimensioning, so that is probably the one you want.  You can see the list of acceptable values in the pulldown.

3 replies

M
MartinHanak24-Ruby III
24-Ruby III
October 6, 2016

Hi,

I can't explain why you cannot modify drawing option. You can try to cheat ... save drawing option to file, modify this file and include modified file back into the drawing.

MH

M
mender12-AmethystAnswer
12-Amethyst
October 6, 2016

You cannot set 'dual_dimensioning' to 'yes', because the legal values for dual_dimensioning are:

no

primary[secondary]

secondary[primary]

secondary

I believe that primary[secondary] is the normal standard means for dual dimensioning, so that is probably the one you want.  You can see the list of acceptable values in the pulldown.

K
kpaiva1-VisitorAuthor
1-Visitor
October 6, 2016

Thats it. Thanks.
