Extruding a finish sketch (part .prt file)

  • January 29, 2015
  • 2 replies
  • 1757 views

Hello PTC community,

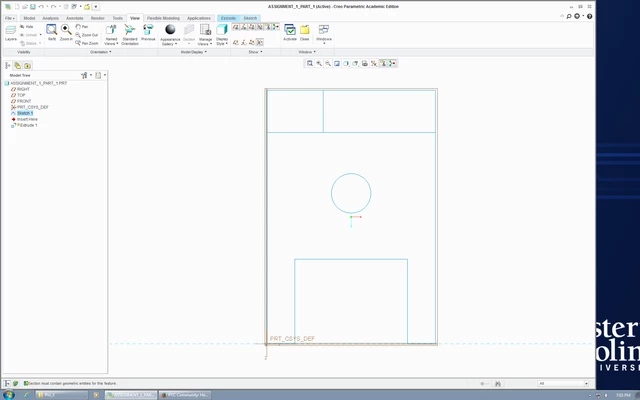

How do I extrude a sketch? I created a 2-D sketch early in the day and having trouble extruding the sketch.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by TomD.inPDX

you can two one of two things:

1) you can maintain a master sketch such as you have but create a new extrude section using the references of your 1st sketch. There is a Project button in the sketcher dialog. Use this method if you need a master "outline" to use for reference in subsequent features.

2) change your sketch to have construction lines and circles rather than geometry lines and circles.

Solid extrudes require a closed loop (or multiple closed loops). Open section loops have to be contiguous but will extrude to a surface or quilt.

Welcome to the forum, Jordan.

2 replies

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
January 29, 2015

Jordan,

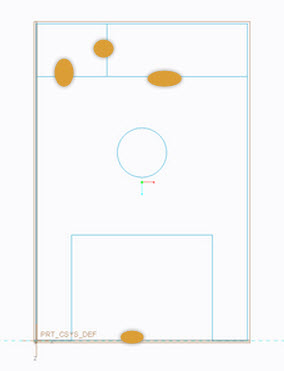

There are intersecting entities in sketch which will not allow your to extrude. Remove intersecting entities and use extrude.


TomD.inPDX17-PeridotAnswer
17-Peridot
January 30, 2015

you can two one of two things:

1) you can maintain a master sketch such as you have but create a new extrude section using the references of your 1st sketch. There is a Project button in the sketcher dialog. Use this method if you need a master "outline" to use for reference in subsequent features.

2) change your sketch to have construction lines and circles rather than geometry lines and circles.

Solid extrudes require a closed loop (or multiple closed loops). Open section loops have to be contiguous but will extrude to a surface or quilt.

Welcome to the forum, Jordan.
