Fill in Hollow Section of Design

  • June 15, 2015
  • 3 replies
  • 6188 views

Hello, I am a student and new to PTC Creo parametric and design.


I have a part with four large holes around the center I would simply like to fill in. I have not been able to do that so far and any step by step instructions would be appreciated. Below is the part with the four gaps I want to fill in.

Screenshot (10).png

Thank you very much and I hope we can solve this problem!


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Mahesh_Sharma

Check attached video.

Activate Flexible Modeling > Select Side surface in cut area > Select Cut in Shape surface selecting > Remove

3 replies

M
Mahesh_Sharma22-Sapphire I
22-Sapphire I
June 15, 2015

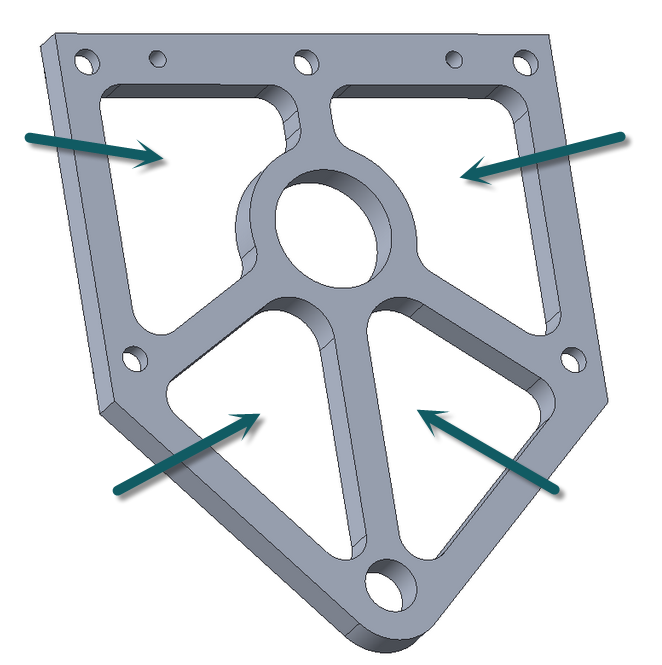

Do you want to remove areas marked in image?


M
Mahesh_Sharma22-Sapphire IAnswer
22-Sapphire I
June 15, 2015

Check attached video.

Activate Flexible Modeling > Select Side surface in cut area > Select Cut in Shape surface selecting > Remove

U
unknown3241-VisitorAuthor
1-Visitor
June 15, 2015

Yes, those are the holes and thank you very much! Earlier I had been trying to work with datum planes but this is awesome!

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
June 15, 2015

Interesting.  Will that work for NON-planar cuts?  If not, it'd be simpler to add a single extrude feature.

M
Mahesh_Sharma22-Sapphire I
22-Sapphire I
June 15, 2015

Frank,

Do you have any example to check Non Planer cut? I think it will work however any example will help me to look in that.
