Flexible Move by Dimension for Cylindrical Objects

  • August 10, 2016
  • 2 replies
  • 2832 views

I would like to make a flexible move of a boss with dimension. When I tried it was possible to move with dragger, but in case of dimensional move, I am not able to pick the reference. Can anyone just let me know how to make that move?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by psobejko

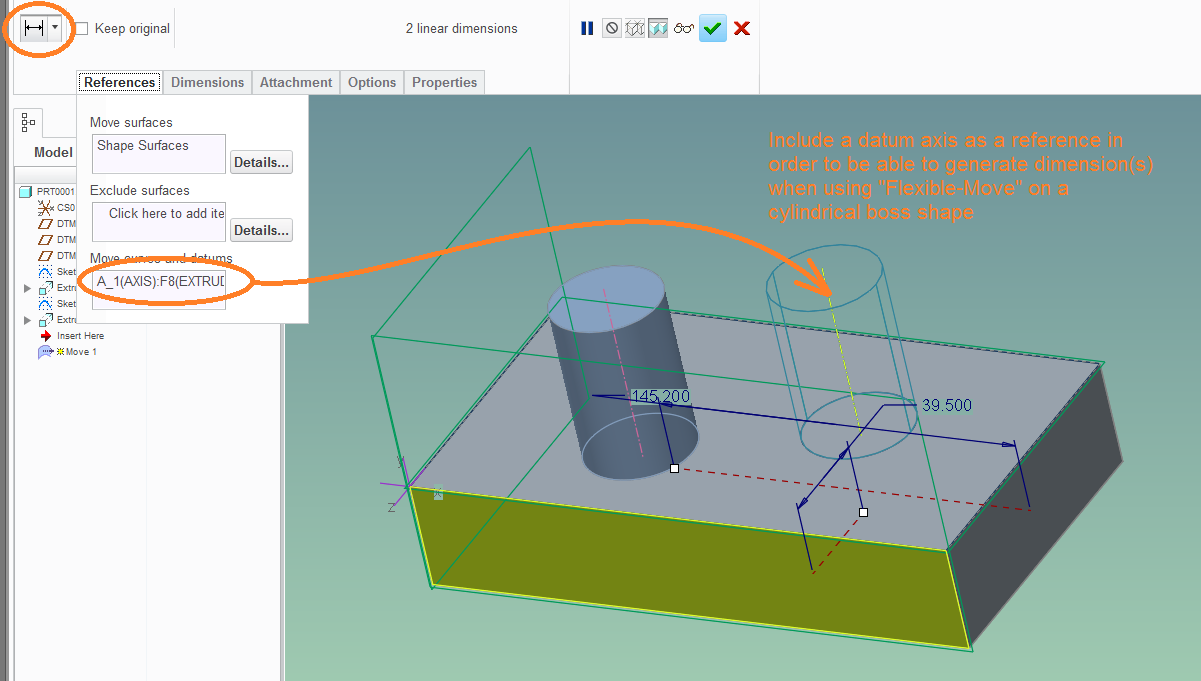

Did you add the datum axis as a reference (into the "Move curves and datums" collector like my screenshot shows)?  If not, you won't be able to select it for dimensioning...

2 replies

J
James621-Visitor
1-Visitor
August 10, 2016

What reference are you trying to pick?

P
psobejko1-Visitor
1-Visitor
August 10, 2016

Yes, it's possible to do this move; you might have to make a datum axis first, though:


S
shussaini.r1-VisitorAuthor
1-Visitor
August 11, 2016

I tried that but I was not able to pick the datum axis as reference for that move.. That's where I was confused. I tried to select a flat surface and along with that when I tried to select the datum I am not able to it, the datum axis is not getting highlighted.. is there anything which I am missing out here?

P
psobejko1-VisitorAnswer
1-Visitor
August 11, 2016

Did you add the datum axis as a reference (into the "Move curves and datums" collector like my screenshot shows)?  If not, you won't be able to select it for dimensioning...
